China 19.2V 3400mAH liFePO4 battery pack with BMS Manufacturer and Supplier | SOSLLI

19.2V 3400mAH liFePO4 battery pack with BMS Featured Image

Short Description:

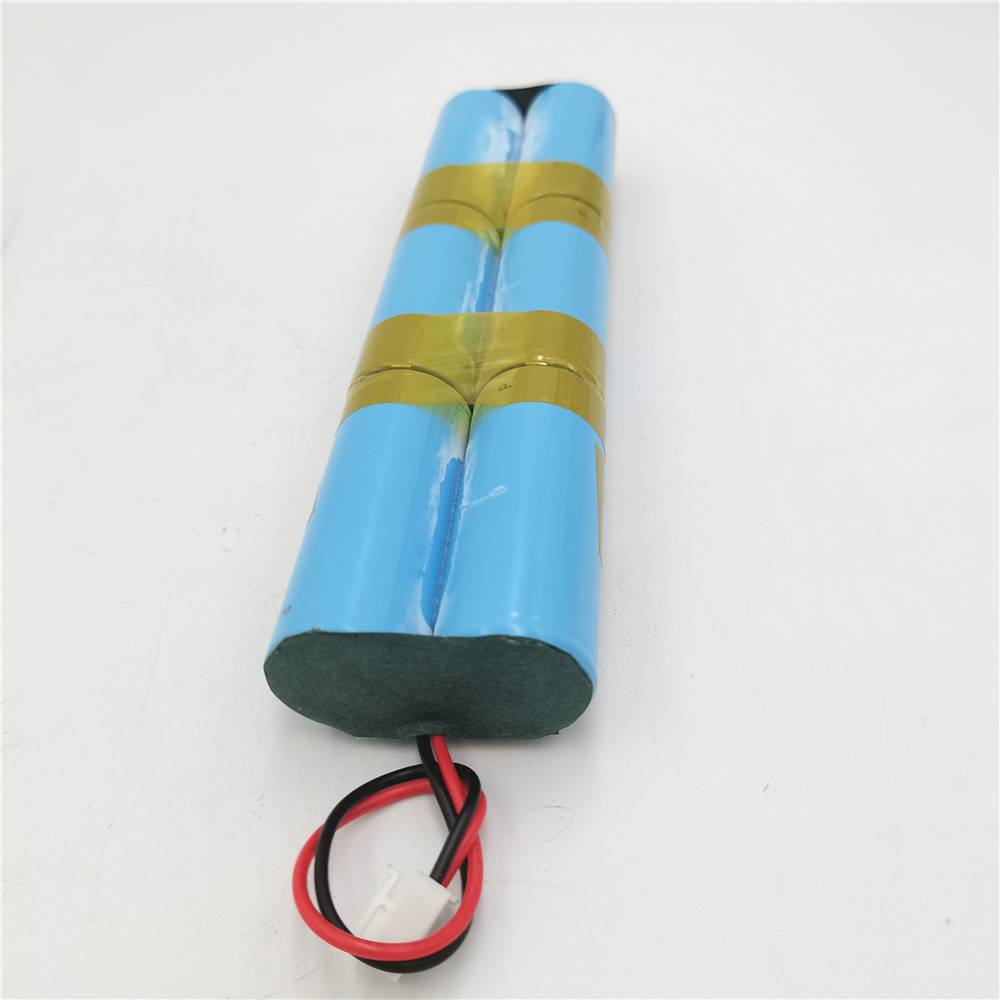

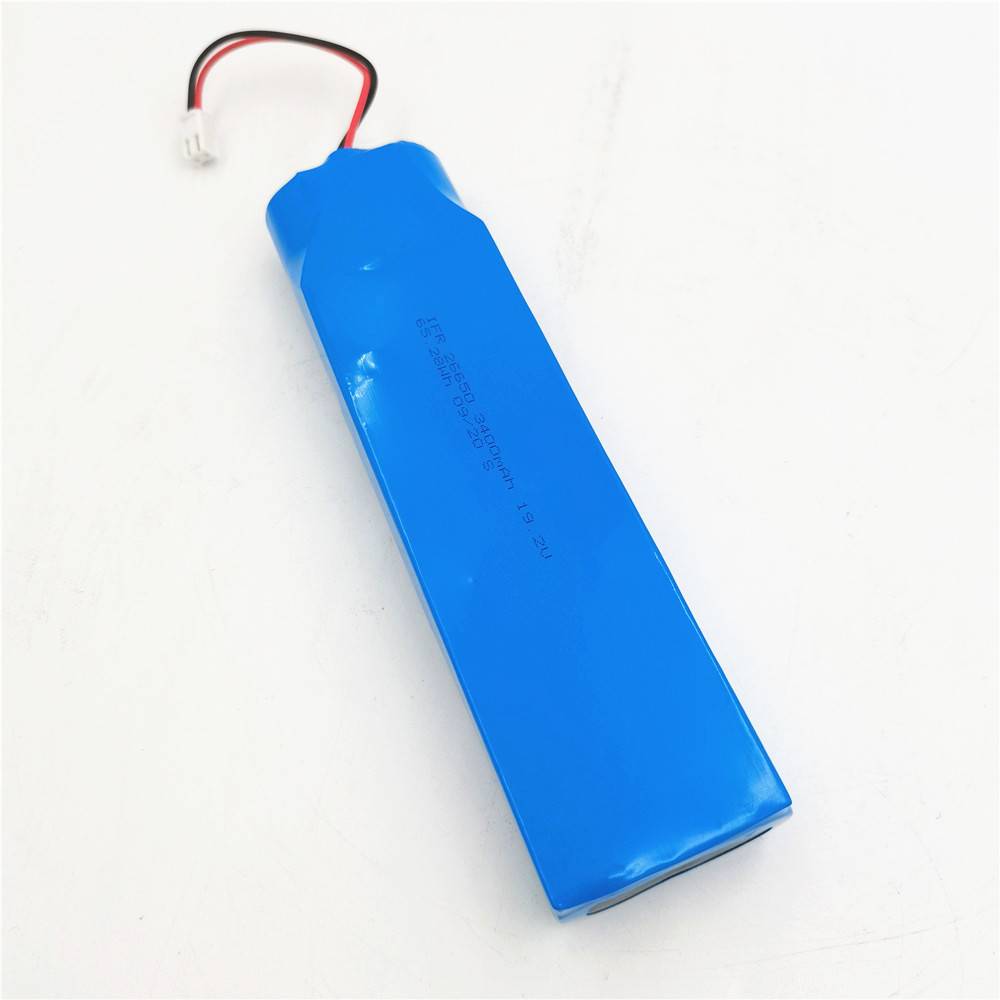

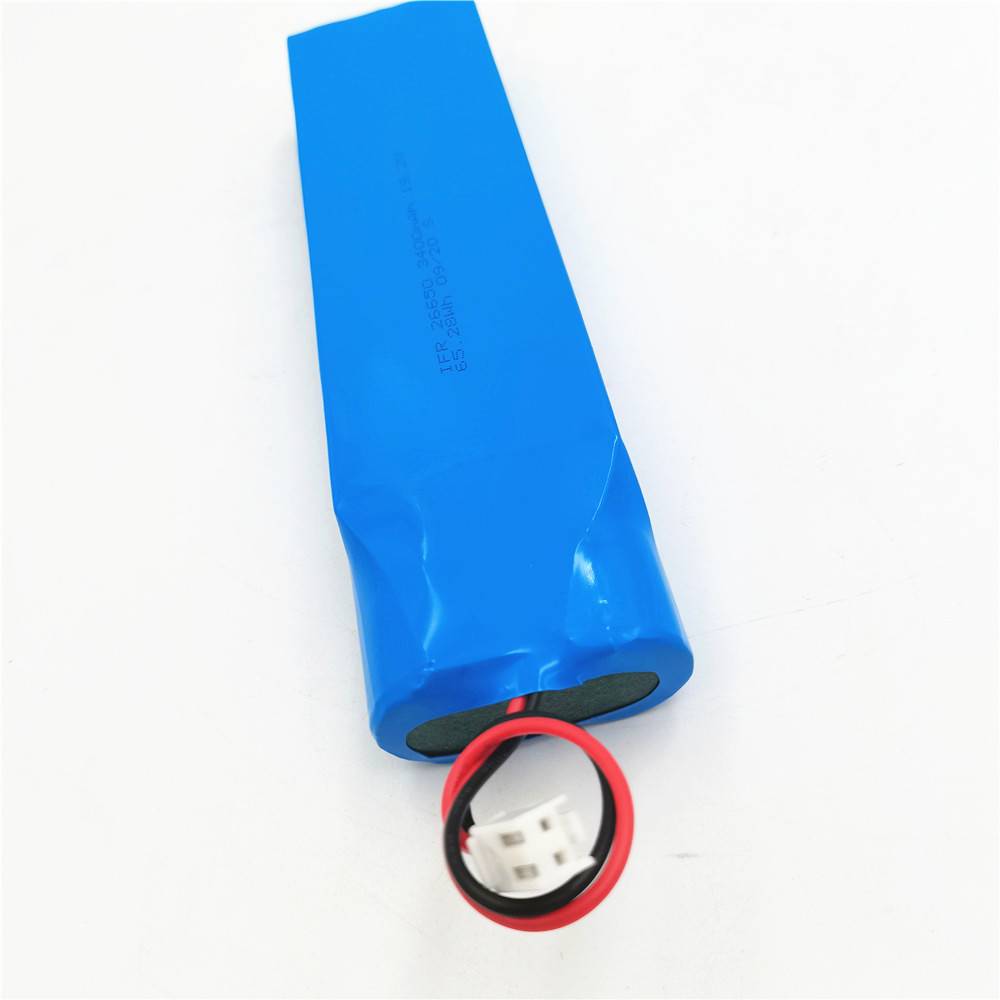

19.2V 3400mAH lithium iron phosphate battery pack with BMS
Model No.: SSL-IFR6S1PE34
Introduction:19.2V 18V 3.4AH LiFePO4 lithium iron phosphate LFP 26650 battery pack for solar energy storage,industrial application.

Send email to us Download as PDF

Tech Specs & Features

Product Video

FAQ

Advantages

19.2V 18v 3.4AH 3400mAh 26650 6s1p LiFePO4 battery pack:

No.	Item		Specification	Remarks
1	Brand Name		SOSLLI or OEM
2	Model NO.		SSL-IFR6S1P26650E34
3	Norminal Capacity		3.4Ah	0.2 C₅A discharge
4	Norminal Voltage		19.2V
5	Discharge Voltage (Min.)		16.5V
6	Charging Voltage (Max.)		21.9V
7	Charging Current (std.)		0.2 C₅A
8	Discharging Current (Max. continue)		1 C₅A
9	Discharging Current (Max. temporary)		2 C₅A
10	Charging Temperature & Humidity		0℃ ~ +45℃ 45~85%RH
11	Discharging Temperature & Humidity		-20℃ ~ +60℃ 45~85%RH
12	Battery storage and transportation environment temperature & humidity ranges	Min. 1 month	-20℃ ~ +60℃ 45~85%RH
		Min. 3 months	-20℃ ~ +45℃ 45~85%RH
		Min. 12 months	-20℃ ~ +25℃ 45~85%RH
13	Battery Type		LiFePO4 battery 26650 3400mAh
14	Internal Impedance
15	Protection Fuctions		Over charge, Over discharge, Over load, Short Circuit
16	Size		55mm x 28mm x 203mm	Recommend or Customize
17	Weight		Approx. 0.5kg PVC packing
18	Cycle Life		3000 times
19	Warranty		12 months

Typical Advantage of Soslli's lithium ion battery PACK:

1 . Wide temperature range: Run well under different temperature environment conditions operation from :-20°C~+60°C .

2 . Wide range power capacity available : we can custom battery per clients requirements

3 . Consistency: Low internal resistance ,Capacity, Voltage, platform time consistency is good ,

4 . Environment-friendly: Clean and green energy , Pollution-free, Doesn’t contain Mercury, No fire, No explosion, No leakage

5 . Compact size With light weight: the best power-to-weight radio which only 1/2 size volume and 1/3 of lead acid battery weight

6 . Powerful Performance : Strong current charge ability , Outstanding Discharge properties and Storage Capacity ,with powerful output which can maximize your electronic appliances performance

7 . low self-discharge rate: less than 3%monthly

8 . Long cycle life: Can extends its cycle life up to 800 times

9. No memory effect: Be charged & discharged at anytime as No memory effect and highly efficient charge and conveniently

10 . High energy capacity density and Strong current charge and discharge capability Stable Performance.

Lithium battery's advantage

Lithium ion batteries are common in consumer electronics. They are one of the most popular types of battery for portable electronics, with one of the best energy-to-weight ratios, no memory effect, and a slow loss of charge when not in use. In addition to uses for consumer electronics, lithium-ion batteries are growing in popularity for defense, automotive, and aerospace applications due to their high energy density.
Lithium batteries are lighter than other equivalent secondary batteries-often much lighter. The energy is stored in these batteries through the movement of lithium ions.
The lithium ion electric bike battery is more safe and reliable than the lead acid one. It does not explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat. Environment-friendly: Accredited with CE, without any hazardous and noxious substances. compacted in volume and light in weight.

As more and more pollution,Warming seriously,Earth Close to Unfit for human Living.

Previous: 12V 5AH 32650 4s1p long LiFePO4 battery pack for electric curtain

Next: 24V 18Ah 18650 rechargeable li-ion battery pack

1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?

A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
