China Deep Cycle 72v 50Ah Battery Pack LiFePO4 Lithium Electric vehicle power supply High Power Forklift Battery Manufacturer and Supplier | SOSLLI

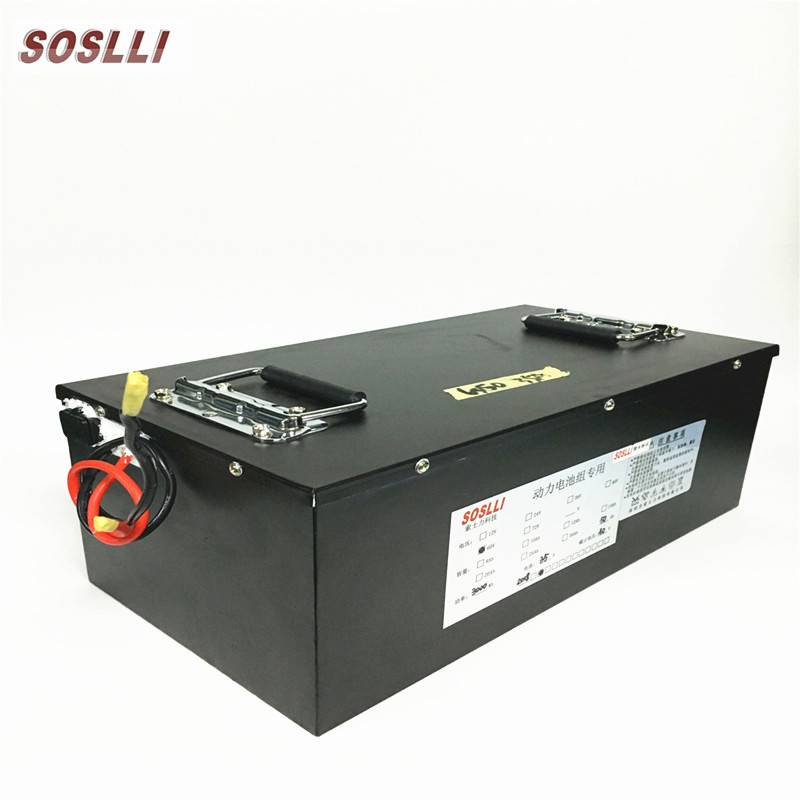

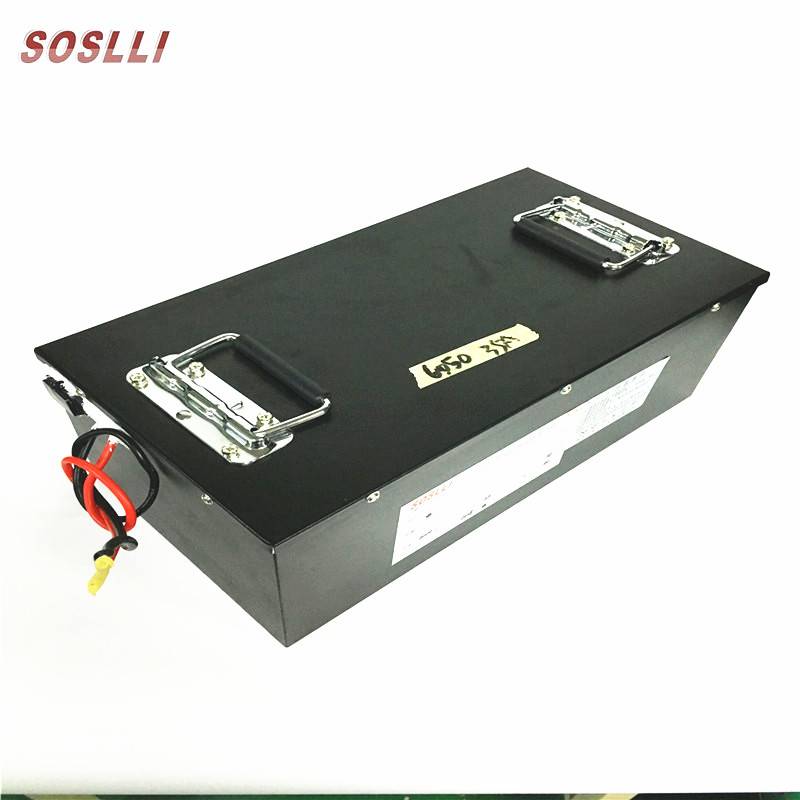

Deep Cycle 72v 50Ah Battery Pack LiFePO4 Lithium Electric vehicle power supply High Power Forklift Battery Featured Image

Short Description:

Model No.: SSL-IFR23S25PE200
Introduction:
72V 50AH Lifepo4 battery pack for electric bike scooter motorcycle, electric golf cart, e-wheelchair, electric drill, electric saw, lawn mower.

Send email to us Download as PDF

Tech Specs & Features

Product Video

FAQ

Advantages

Title: 72v 50Ah lithium iron phosphate lifepo4 battery pack for electric motorcycle bicycle e bike
Model No.: SSL-IFR23S20PE20

Introduction:
72V 50AH Li-Ion lithium ion battery pack for electric bike scooter motorcycle, electric golf cart, e-wheelchair, electric drill, electric saw, lawn mower,Remote control cars, boat, aircraft, toys,Solar and wind power generation energy storage devices, Telecom base Station,UPS,medical portable equipment.

Product Details

72v 50Ah lithium iron phosphate LiFePO4 battery pack:

No.	Item		Specification	Remarks
1	Brand Name		SOSLLI or OEM
2	Model NO.		SSL-IFR23S25P18650E20
3	Normilar Capacity		50h	0.2 C₅A discharge
4	Normilar Voltage		72V
5	Discharge Voltage (Min.)		57.5V
6	Charging Voltage (Max.)		84.0V
7	Charging Current (std.)		0.2 C₅A
8	Discharging Current (Max. continue)		0.5 C₅A
9	Discharging Current (Max. temporary)		2 C₅A
10	Charging Temperature & Humidity		0℃ ~ +45℃ 45~85%RH
11	Discharging Temperature & Humidity		-20℃ ~ +60℃ 45~85%RH
12	Battery storage and transportation environment temperature & humidity ranges	Min. 1 month	-20℃ ~ +60℃ 45~85%RH
		Min. 3 months	-20℃ ~ +45℃ 45~85%RH
		Min. 12 months	-20℃ ~ +25℃ 45~85%RH
13	Battery Type		LiFePO4 battery 18650 2000mAh
14	Internal Impedance
15	Protection Fuctions		Over charge, Over discharge, Over load, Short Circuit
16	Size		460210170mm or customized	Recommend or Customize
17	Weight		Approx. 32kg with metal box
18	Cycle Life		2000 times
19	Warranty		12 months

Features & Benifit of LiFePO4

How safe are Lithium-Ion LiFePO4 Batteries?

Lithium Iron Phosphate chemistry(LFP,LiFePO4) is one of the most safe Lithium-Ion technology.This chemistry is not subject to thermal runaway, is non-flammable and is considered as non-hazardous by international regulation standards.

Each battery is fitted with a high quality BMS that ensure a safeguard role during battery operation.The BMS is designed to deliver high power in complete safety for a very spectrum of applications.

What can LiFePO4 battery be used for?

LiFePO4 batteries are commonly use for Marine,Recreational vehicles,Golf cart applications,CCTV,robotics,PV energy storage,etc...

LiFePO4 battery can be used for any system or application that would normally use Lead acid battery(AGM,GEL) in 12V,up to 48V. After removing the old batteries,place LifePO4 batteries in the same way.

Previous: 12V 20Ah LiFePO4 Deep Cycle Battery

Next: 12V 10Ah LiFePO4 Deep Cycle Battery

1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?

A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
