China 72v 20Ah lithium ion Li-Ion battery pack for e bike Manufacturer and Supplier | SOSLLI
Product Details

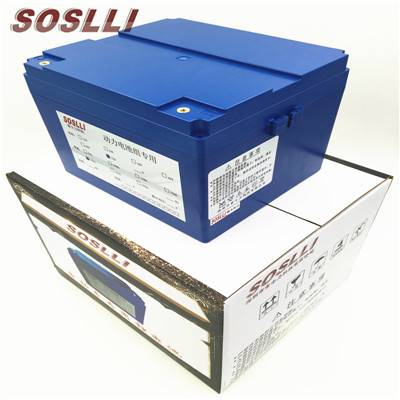

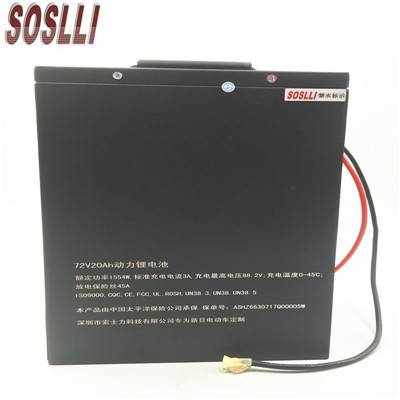

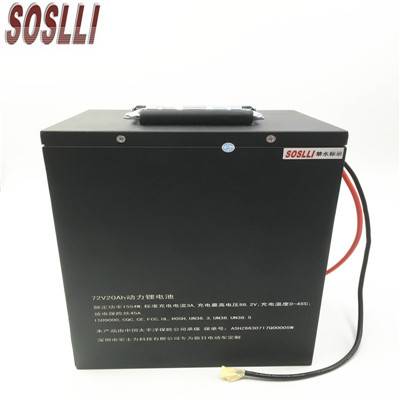

72v 20Ah lithium ion battery pack:
| No. | Item | Specification | Remarks | |
| 1 | Brand Name | SOSLLI or OEM | ||
| 2 | Model NO. | SSL-ICR20S10P18650E20 | ||
| 3 | Normilar Capacity | 20h | 0.2 C5A discharge | |
| 4 | Normilar Voltage | 72V | ||
| 5 | Discharge Voltage (Min.) | 55V | ||
| 6 | Charging Voltage (Max.) | 84V | ||
| 7 | Charging Current (std.) | 0.2 C5A | ||
| 8 | Discharging Current (Max. continue) | 30A | ||
| 9 | Discharging Current (Max. temporary) | 85A | ||
| 10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH | ||
| 11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH | ||
| 12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +60℃ 45~85%RH | |
| Min. 3 months | -20℃ ~ +45℃ 45~85%RH | |||
| Min. 12 months | -20℃ ~ +25℃ 45~85%RH | |||
| 13 | Battery Type | Li-ion battery 18650 2000mAh | ||
| 14 | Internal Impedance | |||
| 15 | Protection Fuctions | Over charge, Over discharge, Over load, Short Circuit | ||
| 16 | Size | 210*170*190mm or customized | Recommend or Customize | |
| 17 | Weight | Approx. 18kg Metal box | ||
| 18 | Cycle Life | 800 times | ||
| 19 | Warranty | 12 months | ||
All lithium ion battery PACK 22.2V series with 3.7v 2600 mAh 18650 cell as below.
| Model | Voltage | Capacity | Size/Weight(package) |
| SSL-ICR6S1P | 22.2V/24V | 2.6Ah | 40*20*200mm or Customized |
| SSL-ICR6S2P | 5.2Ah | Recommend or Customized. The Lithium ion battery PACK can packing with PVC/Plastic box/Iron box that size/weight is according to the battery solution. | |
| SSL-ICR6S3P | 7.8Ah | ||
| SSL-ICR6S4P | 10.4Ah | ||
| SSL-ICR6S5P | 13.0Ah | ||
| SSL-ICR6S6P | 15.6Ah | ||
| SSL-ICR6S7P | 18.2Ah | ||
| SSL-ICR6S8P | 20.8Ah | ||
| SSL-ICR6S9P | 23.4Ah | ||
| SSL-ICR6S10P | 26.0Ah | ||
| SSL-ICR6S20P | 52Ah |
Typical Advantage of Soslli's lithim ion battery PACK:
1. Safer: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging, no memory effect.
3. Longer cycle life more than 800 times @80% capacity retain.
4. Large batch production, offering very similar cells for rating.
1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?
A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
2. Q: Can we get samples for test?
A: Yes, but free samples are not available at beginning.
3. Q: What’s your payment term?
A: TT, L/C, West Union, Paypal etc.
4. Q: What’s your warranty for products?
A: Generally speaking, it’s one year’s warranty, for quality problems, we will send you a new one.
5. Q: How long will be the delivery?
A: Usually delivery in 10-15 days, but could be change according to the quantity or other things.
