China 24V 25.2V 9AH Lithium Ion battery pack with built in BMS Manufacturer and Supplier | SOSLLI
Advantages

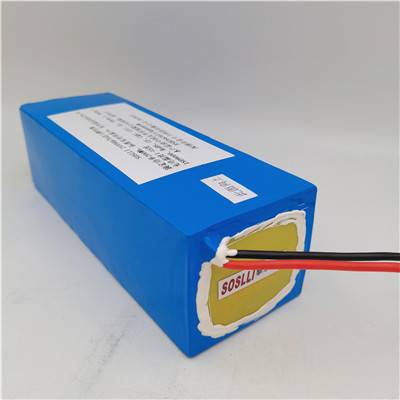

SOSLLI 24V 9000mAh 7S6P 18650 rechargeable lithium ion battery pack:
| No. | Item | Specification | Remarks | |
| 1 | Brand Name | SOSLLI or OEM | ||
| 2 | Model NO. | SSL-ICR6S1P26I | ||
| 3 | Normilar Capacity | 2.6Ah | 0.2 C5A discharge | |
| 4 | Normilar Voltage | 22.2V | ||
| 5 | Discharge Voltage (Min.) | 16.5V | ||
| 6 | Charging Voltage (Max.) | 25.2V | ||
| 7 | Charging Current (std.) | 0.2 C5A | ||
| 8 | Discharging Current (Max. continue) | 1 C5A | ||
| 9 | Discharging Current (Max. temporary) | 2 C5A | ||
| 10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH | ||
| 11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH | ||
| 12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +60℃ 45~85%RH | |
| Min. 3 months | -20℃ ~ +45℃ 45~85%RH | |||
| Min. 12 months | -20℃ ~ +25℃ 45~85%RH | |||
| 13 | Battery Type | Li-ion battery 18650 2000mAh | ||
| 14 | Internal Impedance | ≤60 mΩ | ||
| 15 | Protection Fuctions | Over charge, Over discharge, Over load, Short Circuit | ||
| 16 | Size | 20*40*200mm | Recommend or Customize | |
| 17 | Weight | Approx. 0.4kg Plastic packing | ||
| 18 | Cycle Life | 800 times | ||
| 19 | Warranty | 12 months | ||
All lithium ion battery PACK 22.2V series with 3.7v 2600 mAh 18650 cell as below.
| Model | Voltage | Capacity | Size/Weight(package) |
| SSL-ICR6S1P | 24V/22.2V | 2.6Ah | 40*20*200mm or Customized |
| SSL-ICR6S2P | 5.2Ah | Recommend or Customized. The Lithium ion battery PACK can packing with PVC/Plastic box/Iron box that size/weight is according to the battery solution. | |
| SSL-ICR6S3P | 7.8Ah | ||
| SSL-ICR6S4P | 10.4Ah | ||
| SSL-ICR6S5P | 13.0Ah | ||
| SSL-ICR6S6P | 15.6Ah | ||
| SSL-ICR6S7P | 18.2Ah | ||
| SSL-ICR6S8P | 20.8Ah | ||
| SSL-ICR6S9P | 23.4Ah | ||
| SSL-ICR6S10P | 26.0Ah | ||
| SSL-ICR6S20P | 52Ah |
Advantages
1.Controlled by CPU, serve fulll service to all end users
2.Adopting PWM modulation and advanced Mosfet power device,, running more stable
3.Bypass outlet available, user can connect equipment of heavy load without damaging
UPS
4.Advanced automatic constant charging circuit, prolongs battery life
5.Perfect protection against battery under voltage, overload and short circuit
6.Built inside with high quality value controlled LiFePO4 Lithium ion battery,provides
strong power to users
Key Features
1.Lighter weight , smaller size
2.High temperature performance
3.Extremely safe, no explosion, no fire under collision
4.Strong over-discharge resistance and charge retention
5.Strong charging acceptance and quick-charging capability
6.Maintenance-free and no acid or water for maintenance in usage
7.Large capability and long life for all high power output applications
8.Environmentally friendly non-toxic,non-contaminating,no rare metal
9.Low self-discharge and good discharge performance at low temperature
10.Excellent large current discharge performance especially in startup and climbing
Lithium battery's advantage
Lithium ion batteries are common in consumer electronics. They are one of the most popular types of battery for portable electronics, with one of the best energy-to-weight ratios, no memory effect, and a slow loss of charge when not in use. In addition to uses for consumer electronics, lithium-ion batteries are growing in popularity for defense, automotive, and aerospace applications due to their high energy density.
Lithium batteries are lighter than other equivalent secondary batteries-often much lighter. The energy is stored in these batteries through the movement of lithium ions.
The lithium ion electric bike battery is more safe and reliable than the lead acid one. It does not explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat. Environment-friendly: Accredited with CE, without any hazardous and noxious substances. compacted in volume and light in weight.
As more and more pollution,Warming seriously,Earth Close to Unfit for human Living.
1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?
A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
2. Q: Can we get samples for test?
A: Yes, but free samples are not available at beginning.
3. Q: What’s your payment term?
A: TT, L/C, West Union, Paypal etc.
4. Q: What’s your warranty for products?
A: Generally speaking, it’s one year’s warranty, for quality problems, we will send you a new one.
5. Q: How long will be the delivery?
A: Usually delivery in 10-15 days, but could be change according to the quantity or other things.
