China 24V 200AH LiFePO4 lithium iron phosphate battery pack for off-grid solar energy Manufacturer and Supplier | SOSLLI
Product Details
Title: 24V 200AH LiFePO4 lithium iron phosphate battery pack for off-grid solar energy
Model No.: SSL-IFR8S2PE1000
Introduction: 24V 200AH LiFePO4 lithium iron phosphate LFP battery pack for solar energy storage,off-grid, backup power.,UPS station,home household storage powerwall, iron tower, marine yacht,solar energy,etc.
Product Description
Rechargeable Storage 24V 200Ah LiFePO4 Energy Battery Pack for Solar UPS System Specification of 24V Lithium LiFePO4 Battery
| No. | Item | Specification | Remarks | |
| 1 | Brand Name | SOSLLI or OEM | ||
| 2 | Model NO. | SSL-IFR8S2PE1000 | ||
| 3 | Norminal Capacity | 200Ah | 0.2 C5A discharge | |
| 4 | Norminal Voltage | 25.6V | ||
| 5 | Discharge Voltage (Min.) | 20.0V | ||
| 6 | Charging Voltage (Max.) | 29.2V | ||
| 7 | Charging Current (std.) | 0.25 C5A 40A | ||
| 8 | Discharging Current (Max. continue) | 0.5 C5A 100A | ||
| 9 | Discharging Current (Max. temporary) | 0.75 C5A 150A | ||
| 10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH | ||
| 11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH | ||
| 12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +60℃ 45~85%RH | |
| Min. 3 months | -20℃ ~ +45℃ 45~85%RH | |||
| Min. 12 months | -20℃ ~ +25℃ 45~85%RH | |||

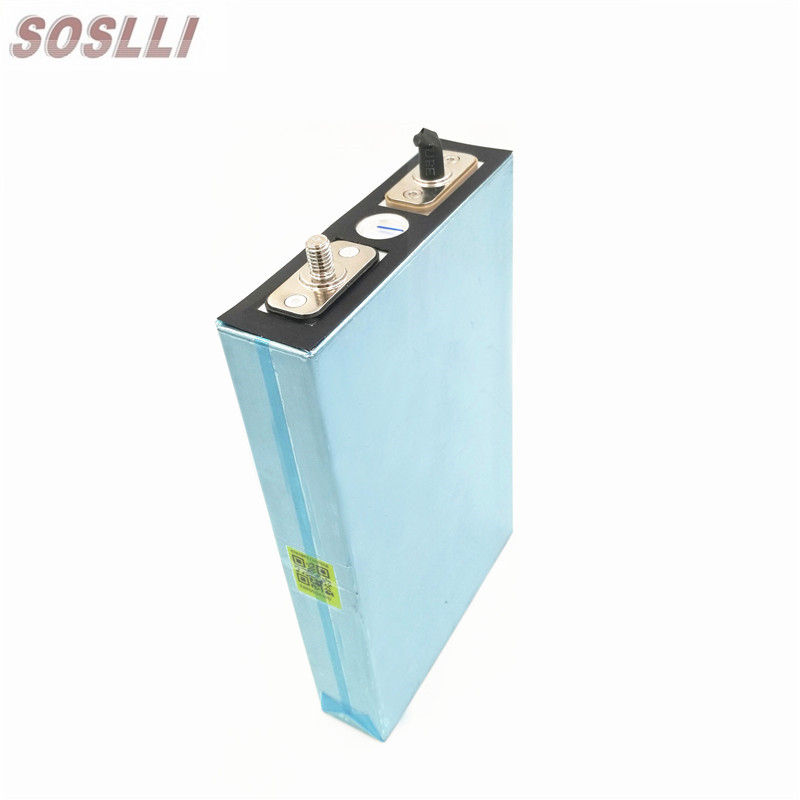

| 13 | Battery Cell | Prismatic LiFePO4 battery 3.2V 100Ah | ||
| 14 | Battery Box Size | Box:34cm*28cm*25cmRed/black pole: 27mm | ||
| 15 | Protection Fuctions | Over charge, Over discharge, Over load, Short Circuit | ||
| 16 | BMS | include | ||
| 17 | Weight | Approx. 36kg | ||
| 18 | Cycle Life | 2000 times | ||
| 19 | Warranty | 12 months | ||
Product Advantages of Lithium lron phosphate-lithium power battery:
Long warranty period:2 years
Higher energy density, smaller volumn for household.
Support connected in parallel mode for expansion
Photovoltaic system: This battery pack is designed for household photovoltaic systems.
Battery management system (BMS): The battery packs built-in BMS monitors its
operation and prevents the battery from operating outside design limitations.
Expandability: This battery pack can be easily expanded by adding expansion battery packs in parallel connection.
Applications

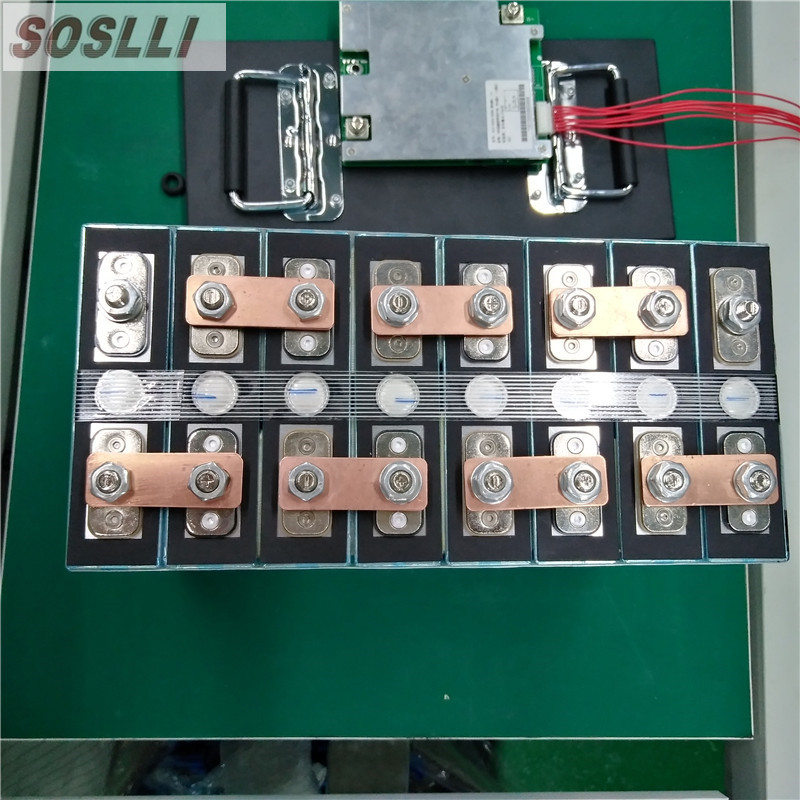

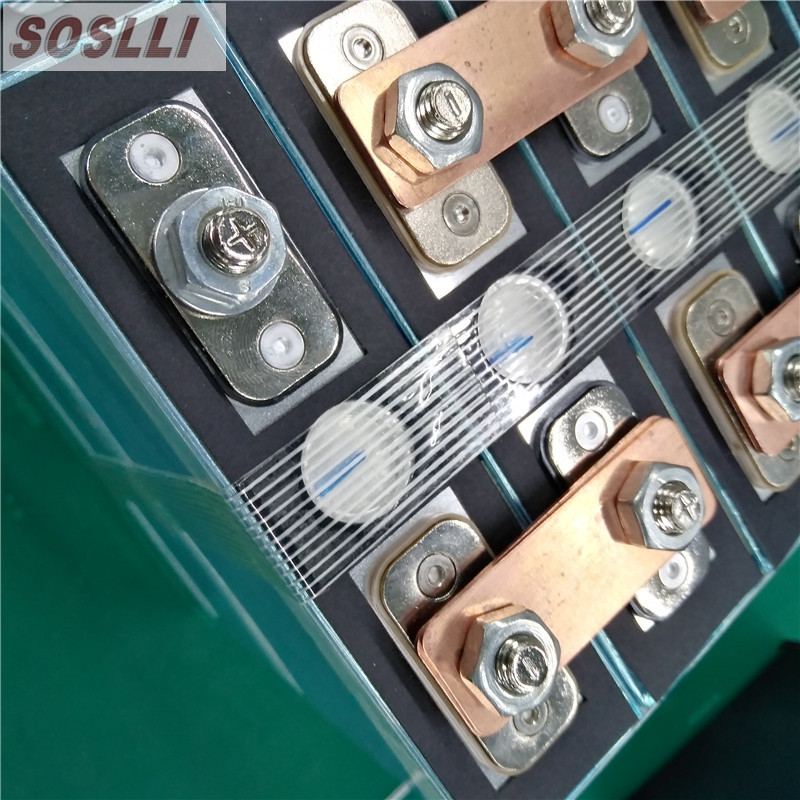

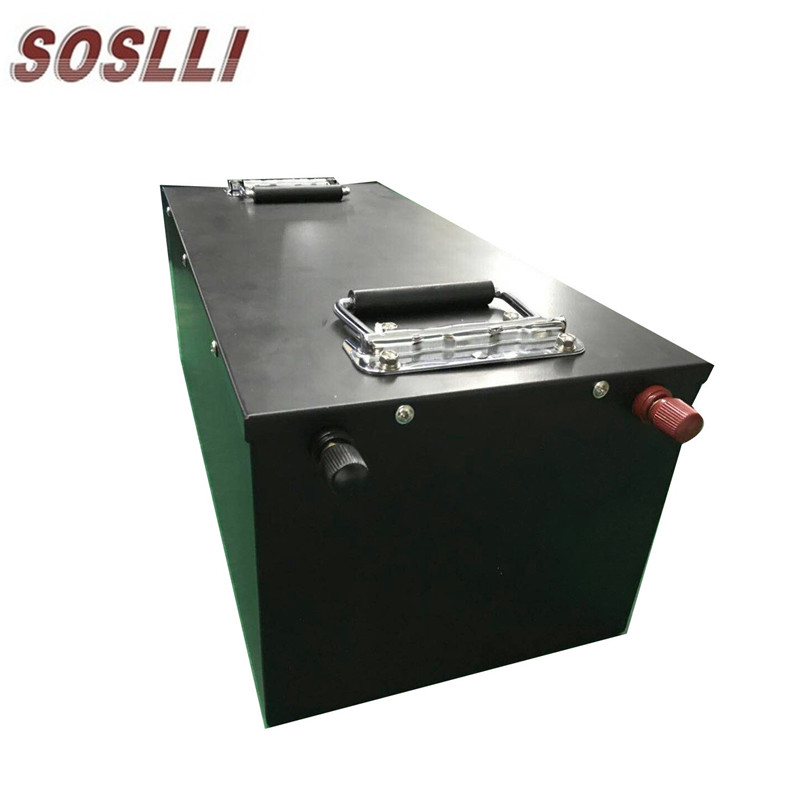

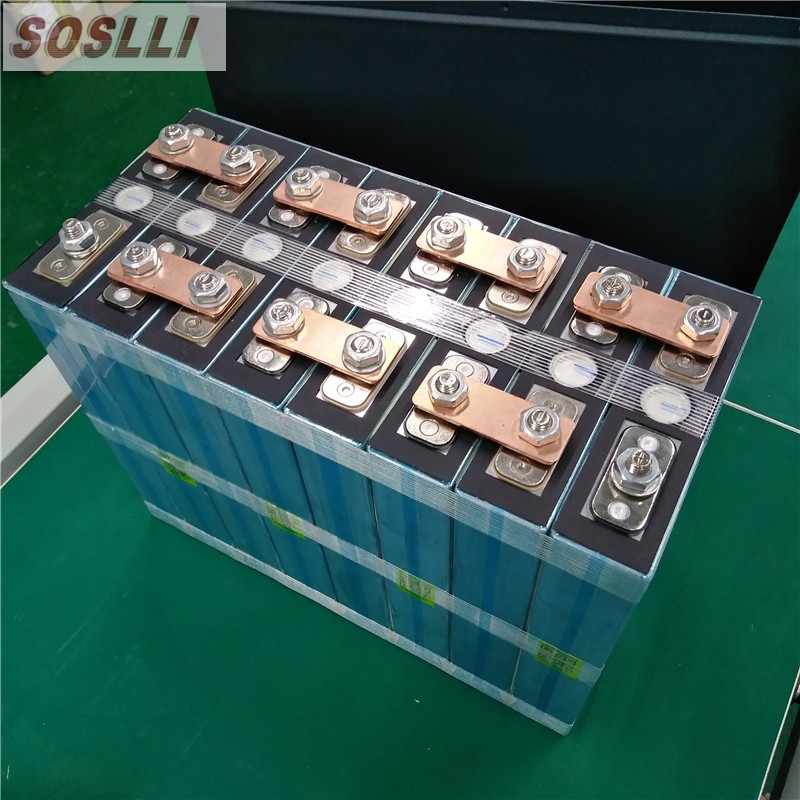

Picture of 24V 200Ah LPF battery
Lithium LPF battery Applications:
Engine Starting Battery
Commercial Bus and Transit: E-car, E-bus, Golf trolley/car
E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan
Wheel chair, E-truck, E-sweeper, Floor cleaner, E-walker etc.
Intellectual Robots
LIfePO4 Battery Replace Lead acid or AGM or AA Battery .
Over 2000 cycel times! 4 Years warranty!
Application :
1)Communication device: communication base station, handheld road test instruments, portable communication tester, portable radio station.
2)Medical instruments: monitor, electrocardiogram machine, portable type-B ultrasonic, defibrillator, breathing machine.
3)Industrial instrument:water quality testing meter, geotechnical tester, laser orientation instrument car arrester.
4)Electric tools: handheld electric drill, moped, golf carts.
Our Service
1. Respond in 24 hours for any inquiry and consultation on our EV battery product .
2. Take actions quickly for normal client's claim within 24 hours
3. Good after sales service : we offer one and half year quality warranty to our client ,we will take responsibility if there is any quality
4. One by one tested before shipment.
1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?
A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
2. Q: Can we get samples for test?
A: Yes, but free samples are not available at beginning.
3. Q: What’s your payment term?
A: TT, L/C, West Union, Paypal etc.
4. Q: What’s your warranty for products?
A: Generally speaking, it’s one year’s warranty, for quality problems, we will send you a new one.
5. Q: How long will be the delivery?
A: Usually delivery in 10-15 days, but could be change according to the quantity or other things.
