Product Details and Advantages

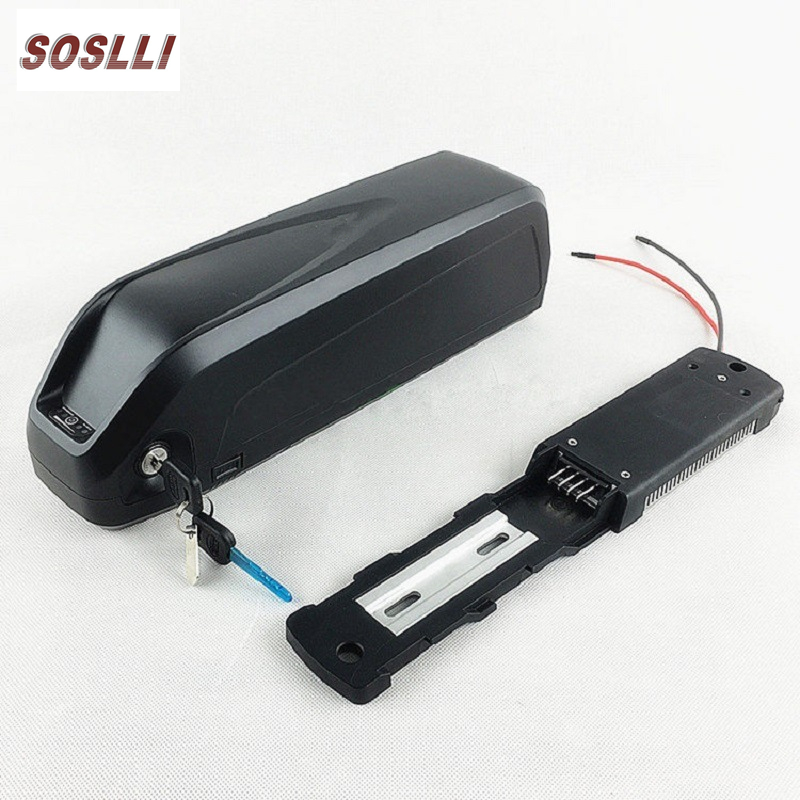

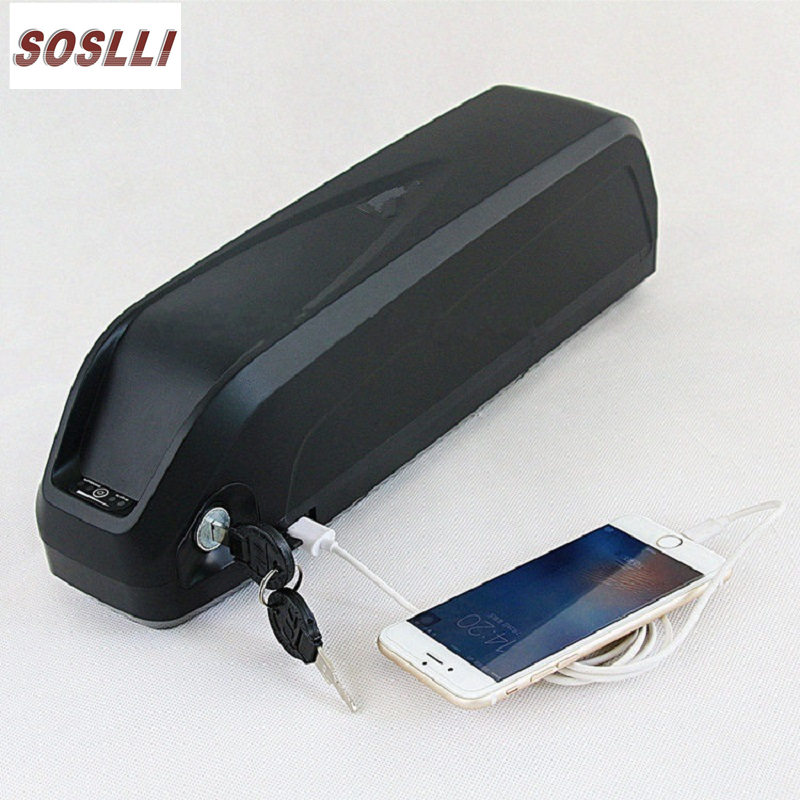

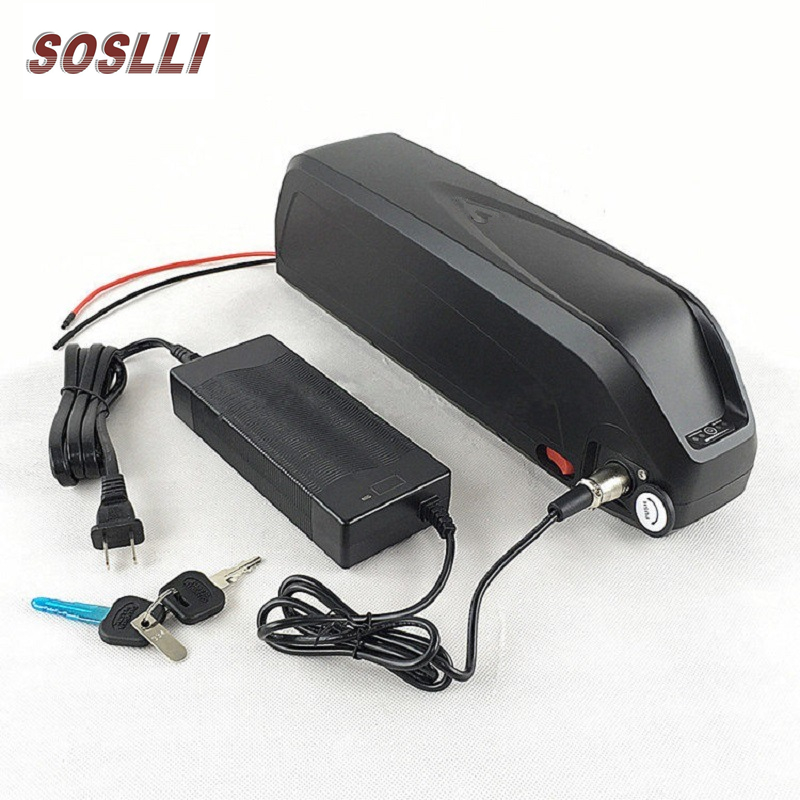

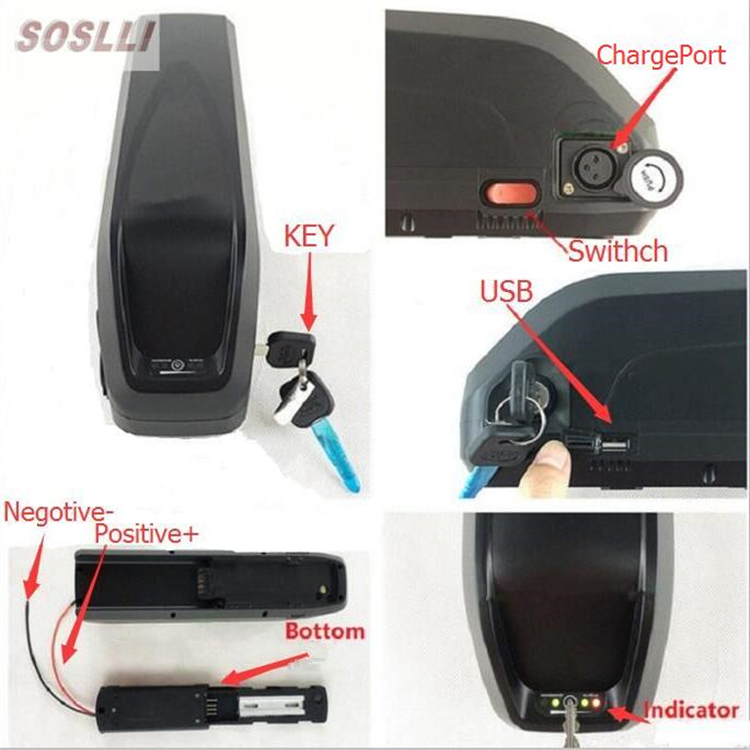

36V 13AH Hailong down tube lithium ion Ebike battery for Electric bike
Introduction: 36V 13AH lithium Ion Li.Ion battery pack for electric bus, electric car, E.Tour Car,electric bike scooter motorcycle, electric golf cart, e.wheelchairelectric drill, electric saw, lawn mower,Remote control cars, boat, aircraft, toys,Solar and wind power generation energy storage devices, Telecom base Station,UPS,medical portable equipment.
E bike battery 36V 13Ah lithium Ion battery pack hailong case by Japan Korea new Grade A 18650 cell :
| No. | Item | Specification | Remarks | |
| 1 | Brand Name | SOSLLI or OEM | ||
| 2 | Model NO. | SSL-ICR10S5P18650E26 | ||
| 3 | Normilar Capacity | 13Ah | 0.2 C5A discharge | |
| 4 | Normilar Voltage | 36V | ||
| 5 | Discharge Voltage (Min.) | 24V | ||
| 6 | Charging Voltage (Max.) | 43.8V | ||
| 7 | Charging Current (std.) | 0.5 C5A | ||
| 8 | Discharging Current (Max. continue) | 1 C5A | ||
| 9 | Discharging Current (Max. temporary) | 2 C5A | ||
| 10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH | ||
| 11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH | ||
| 12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +60℃ 45~85%RH | |
| Min. 3 months | -20℃ ~ +45℃ 45~85%RH | |||
| Min. 12 months | -20℃ ~ +25℃ 45~85%RH | |||
| 13 | Battery Type | Japan/ Korea new Grade A 18650 2600mAh | ||
| 14 | Internal Impedance | |||
| 15 | Protection Fuctions | Over charge, Over discharge, Over load, Short Circuit | ||
| 16 | Size | Customized | Customized Bottle type | |
| 17 | Weight | Approx. 4.5kg | ||
| 18 | Cycle Life | 800 times | ||
| 19 | Warranty | 12 months | ||
More options
36V 10.4AH Hailong Battery
Size: 90*90*368mm
Cell: 18650*50pcs
Continuous Discharging Current: 40A
Charge Current: 2-10A
Charge Limit Voltage: 42.0V
Weight: About 3.5KG
36V 17.5AH Hailong Battery
Size: 90*90*368mm
Cell: 18650*50pcs
Continuous Discharging Current: 30A
Charge Current: 2-10A
Charge Limit Voltage: 42.0V
Weight: About 3.5KG
36V 21AH Hailong Battery
Size: 90*110*368mm
Cell: 18650*60pcs
Continuous Discharging Current: 40A
Charge Current: 2-10A
Charge Limit Voltage: 42.0V
Weight: About 4.0KG
48V 10.4AH Hailong Battery
Size: 90*90*368mm
Cell: 18650*42pcs
Continuous Discharging Current: 30A
Charge Current: 2-10A
Charge Limit Voltage: 42.0V
Weight: About 3.0KG
48V 13AH Hailong Battery
Size: 90*110*368mm
Cell: 18650*65pcs
Continuous Discharging Current: 30A
Charge Current: 2-10A
Charge Limit Voltage: 42.0V
Weight: About 4.0KG
48V 17.5AH Hailong Battery
Size: 90*110*368mm
Cell: 18650*65pcs
Continuous Discharging Current: 40A
Charge Current: 2-10A
Charge Limit Voltage: 42.0V
Weight: About 4.0KG
OEM/ODM orders are welcomed:
1. Battery can be produced with Samsung cell、LG cell、Panasonic cell or High power Chinese 18650 cell.
2. Battery can be customized as your requirements.
The features of the electric bike lithium battery:
1. Safe: The li-ion electric bike battery is more safe and reliable than the lead acid one. It does not explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat.
2. Environment-friendly: Accredited with CE, without any hazardous and noxious substances.
3. Small in volume and light in weight: The li-ion electric bike battery is about 1/2 the volume and 1/3 the weight of the lead-acid battery.
4. Steady performance: high power output,1C continuous,3C pulse for normal cells and 20 C for special design. low self-discharge rate, less than3%monthly.
5. Long cycle life: over 1000 cycles with capacity staying at 80% min.
6. Lower average price: per year: the average price per year is less than the lead-acid battery.
7. No memory effect: always ready for charge and use, with no need to charge after a full discharg.
8. Wide temperature range: Available for use when the temperature ranges from 10°C to -55°C .
Precautions:
1. Please charge the battery immediately after receiving.
2. Certificates:CE, RoHs, UN38.3,MSDS.
3. Please charge the battery max 3 months without using.
4. Keep away from fire and water.
5. If you have any questions, please feel free to contact us.
1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?
A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
2. Q: Can we get samples for test?
A: Yes, but free samples are not available at beginning.
3. Q: What’s your payment term?
A: TT, L/C, West Union, Paypal etc.
4. Q: What’s your warranty for products?
A: Generally speaking, it’s one year’s warranty, for quality problems, we will send you a new one.
5. Q: How long will be the delivery?
A: Usually delivery in 10-15 days, but could be change according to the quantity or other things.
