China 36V 10Ah water bottle lithium battery li-ion pack for electric bicycle Manufacturer and Supplier | SOSLLI

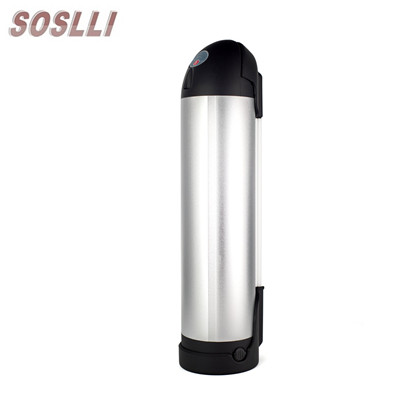

SOSLLI 36v 10ah water bottle electric bicycle lithium battery with kettle case:
No. | Item | Specification | Remarks | |
1 | Brand Name | SOSLLI or OEM | ||
2 | Model NO. | SSL-10S5P20P | ||
3 | Normilar Capacity | 10.0Ah | 0.2 C5A discharge | |
4 | Normilar Voltage | 36V | ||
5 | Discharge Voltage (Min.) | 42V | ||
6 | Charging Voltage (Max.) | 27V | ||
7 | Charging Current (std.) | 0.5 C5A | ||
8 | Discharging Current (Max. continue) | 1 C5A | ||
9 | Discharging Current (Max. temporary) | 2 C5A | ||
10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH | ||
11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH | ||
12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +60℃ 45~85%RH | |
Min. 3 months | -20℃ ~ +45℃ 45~85%RH | |||
Min. 12 months | -20℃ ~ +25℃ 45~85%RH | |||
13 | Battery Type | Li-ion battery 18650 2000mAh | ||
14 | Internal Impedance | ≤60 mΩ | ||
15 | Protection Fuctions | Over charge, Over discharge, Over load, Short Circuit | ||
16 | Size | D90*H340mm | Customized Bottle type | |
17 | Weight | Approx. 5.0kg PVC packing | ||
18 | Cycle Life | 800 times | ||
19 | Warranty | 12 months |
Features of 36V 10Ah bottle battery:
1. High operation voltage.
2. High energy density.
3. Long cycle life, more than 500 charge/discharge cycles ( 80% capacity remained ).
4. Lowl self-discharge, less than 3% monthly.
5. Wide temperature range, operation from :-20°C~+60°C
6. Be charged & discharged at anytime because of non-memory effect
7. 5 LED power indicators which can show the remaining power
8. High level of safety, vision Lithium ion batteries catch no fire and cause no explosion in breaking experiment, with acupuncture, smash, drop, and so on.
Typical Advantage of Soslli's lithium Ion battery PACK:
1. Safer: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging and no memory effect.
3. Longer cycle life more than 500 times @80% capacity retain.
4. Large batch production, offering very similar cells for rating.
Applications:
1) Electric bikes
2) electric scooters
3) golf trolleys
4) lawn mowers
5) electric wheelchairs
6) Ride-on toys
QC Standard for Battery Pack
1. Check all connection included cell to cell, data wires between cells and BMS, BMS to the cell, BMS
2. to the discharging port and charging port
3. 100% capacity at 0.2C discharging and in normal temperature 20°c
4. >98% capacitive at 1.5C discharging and in normal temperature 20°c
5. >95% capacity at normal discharging in very high temperature 55°c
6. >50% capacity at normal discharging in very low temperature -20°c
7. Over-discharging testing
8. Over-charging testing
![](https://cdn.globalso.com/soslli.com/Electric-Bike-Kettle-Battery-48V-Lithium-Li-4.jpg)
1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?
A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
2. Q: Can we get samples for test?
A: Yes, but free samples are not available at beginning.
3. Q: What’s your payment term?
A: TT, L/C, West Union, Paypal etc.
4. Q: What’s your warranty for products?
A: Generally speaking, it’s one year’s warranty, for quality problems, we will send you a new one.
5. Q: How long will be the delivery?
A: Usually delivery in 10-15 days, but could be change according to the quantity or other things.
