China 9.6V 1.5AH 18650 3s1p LiFePO4 battery pack for solar light Manufacturer and Supplier | SOSLLI

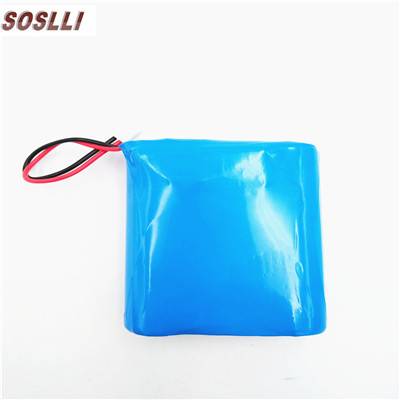

9.6V 1.5AH 18650 3s1p LiFePO4 battery pack for solar light Featured Image

Short Description:

Model No.: SSL-IFR3S1PE15
Introduction:9.6V 1.5AH 18650 3s1p LiFePO4 battery pack for solar light,electric lighting, consumer electronics,toys,etc.

Send email to us Download as PDF

Tech Specs & Features

Product Video

FAQ

Product Details

9.6V 1.5AH 18650 4s1p LiFePO4 battery pack for solar lighting:

No.	Item		Specification	Remarks
1	Brand Name		SOSLLI or OEM
2	Model NO.		SSL-IFR3S1P18650E15
3	Normilar Capacity		1.5Ah	0.2 C₅A discharge
4	Normilar Voltage		9.6V
5	Discharge Voltage (Min.)		7.5V
6	Charging Voltage (Max.)		10.95V
7	Charging Current (std.)		0.2 C₅A
8	Discharging Current (Max. continue)		4A
9	Discharging Current (Max. temporary)		8A
10	Charging Temperature & Humidity		0℃ ~ +45℃ 45~85%RH
11	Discharging Temperature & Humidity		-20℃ ~ +60℃ 45~85%RH
12	Battery storage and transportation environment temperature & humidity ranges	Min. 1 month	-20℃ ~ +60℃ 45~85%RH
		Min. 3 months	-20℃ ~ +45℃ 45~85%RH
		Min. 12 months	-20℃ ~ +25℃ 45~85%RH
13	Battery Type		LiFePO4 battery 18650 1500mAh
14	Internal Impedance
15	Protection Fuctions		Over charge, Over discharge, Over load, Short Circuit
16	Size		56mm x 18mm x 68mm	Recommend or Customize
17	Weight		Approx. 0.15kg PVC packing
18	Cycle Life		3000 times
19	Warranty		12 months

Typical Advantage of Soslli's lithim ion battery PACK:
1. Safer: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging, no memory effect.
3. Longer cycle life more than 200 times @70% capacity retain.
4. Large batch production, offering very similar cells for rating.

Previous: Custom made Replacement 40V 4.0 Ah Lithium battery For Greenworks G-max 29462 29472

Next: 18v 5S2P 4400mAh 18650 li-ion battery rechargeable battery pack

1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?

A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
