China 14.8V 5200mAH li-ion battery pack with BMS Manufacturer and Supplier | SOSLLI
Advantages

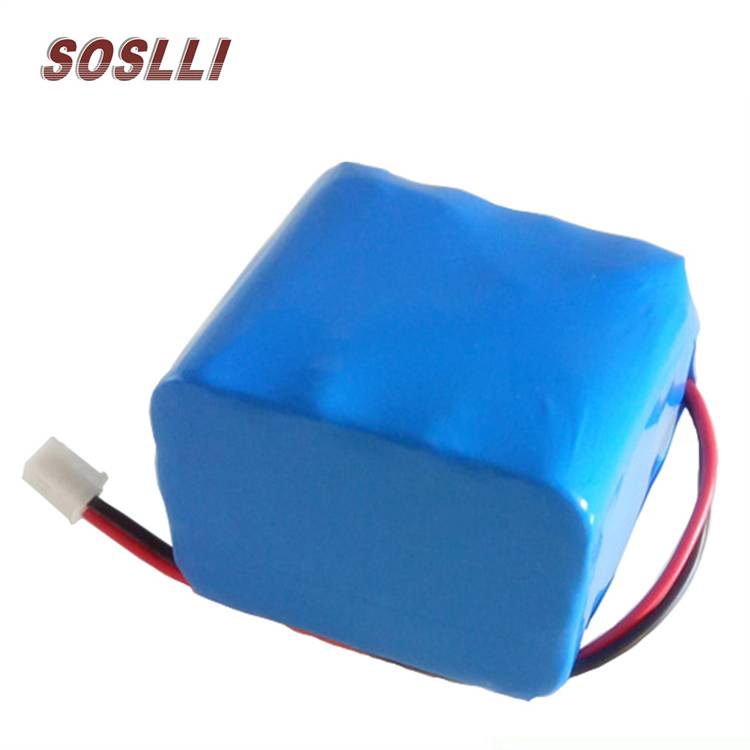

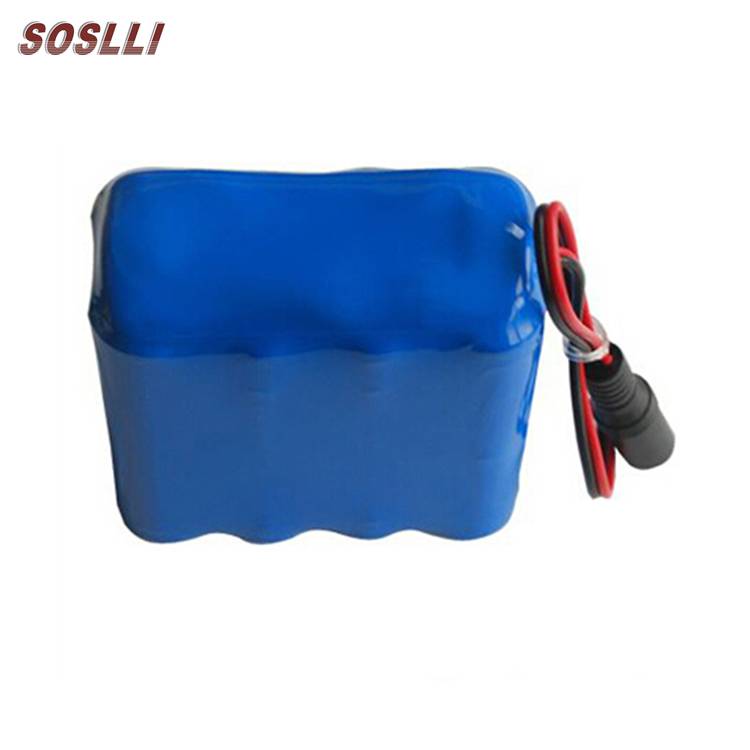

SOSLLI 18650 14.8V 5200mAh 4S2P rechargeable lithium ion battery pack with bms:
Our company is a professional high-tech global supplier, specialized in the research and development, production and marketing of Cycle Rechargeable Lipo Batteries,
for Our battery mostly covering RC Market: UAV, RC Helicopter, RC Car, FPV, Air gun, Boat , etc.
No. | Item | Specification | Remarks | |
1 | Brand Name | SOSLLI or OEM | ||
2 | Model NO. | SSL-ICR4S2P26I | ||
3 | Normilar Capacity | 5.2Ah | 0.2 C5A discharge | |
4 | Normilar Voltage | 14.8V | ||
5 | Discharge Voltage (Min.) | 11V | ||
6 | Charging Voltage (Max.) | 16.8V | ||
7 | Charging Current (std.) | 0.2 C5A | ||
8 | Discharging Current (Max. continue) | 1 C5A | ||
9 | Discharging Current (Max. temporary) | 2 C5A | ||
10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH | ||
11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH | ||
12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +60℃ 45~85%RH | |
Min. 3 months | -20℃ ~ +45℃ 45~85%RH | |||
Min. 12 months | -20℃ ~ +25℃ 45~85%RH | |||
13 | Battery Type | Li-ion battery 18650 2000mAh | ||
14 | Internal Impedance | |||
15 | Protection Fuctions | Over charge, Over discharge, Over load, Short Circuit | ||
16 | Size | 80*40*70mm | Recommend or Customize | |
17 | Weight | Approx. 0.6kg Plastic packing | ||
18 | Cycle Life | 800 times | ||
19 | Warranty | 12 months |

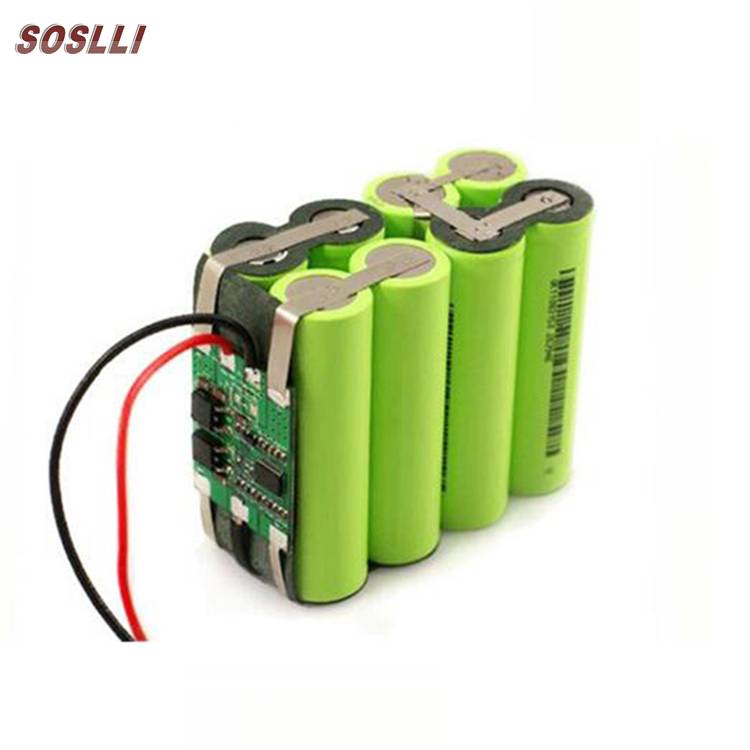

All lithium ion battery PACK 14.8V series with 3.7v 2600 mAh 18650 cell as below.
Model | Voltage | Capacity | Size/Weight(package) |
SSL-ICR4S1P | 14.8V | 2.6Ah | 40*40*70mm or Customized |
SSL-ICR4S2P | 5.2Ah | Recommend or Customized. The Lithium ion battery PACK can packing with PVC/Plastic box/Iron box that size/weight is according to the battery solution. | |
SSL-ICR4S3P | 7.8Ah | ||
SSL-ICR4S4P | 10.4Ah | ||
SSL-ICR4S5P | 13.0Ah | ||
SSL-ICR4S6P | 15.6Ah | ||
SSL-ICR4S7P | 18.2Ah | ||
SSL-ICR4S8P | 20.8Ah | ||
SSL-ICR4S9P | 23.4Ah | ||
SSL-ICR4S10P | 26.0Ah | ||
SSL-ICR4S20P | 52Ah |
Typical Advantage of Soslli's lithium ion battery PACK:
1 . Wide temperature range: Run well under different temperature environment conditions operation from :-20°C~+60°C .
2 . Wide range power capacity available : we can custom battery per clients requirements
3 . Consistency: Low internal resistance ,Capacity, Voltage, platform time consistency is good ,
4 . Environment-friendly: Clean and green energy , Pollution-free, Doesn’t contain Mercury, No fire, No explosion, No leakage
5 . Compact size With light weight: the best power-to-weight radio which only 1/2 size volume and 1/3 of lead acid battery weight
6 . Powerful Performance : Strong current charge ability , Outstanding Discharge properties and Storage Capacity ,with powerful output which can maximize your electronic appliances performance
7 . low self-discharge rate: less than 3%monthly
8 . Long cycle life: Can extends its cycle life up to 800 times
9. No memory effect: Be charged & discharged at anytime as No memory effect and highly efficient charge and conveniently
10 . High energy capacity density and Strong current charge and discharge capability Stable Performance.
Lithium battery's advantage
Lithium ion batteries are common in consumer electronics. They are one of the most popular types of battery for portable electronics, with one of the best energy-to-weight ratios, no memory effect, and a slow loss of charge when not in use. In addition to uses for consumer electronics, lithium-ion batteries are growing in popularity for defense, automotive, and aerospace applications due to their high energy density.
Lithium batteries are lighter than other equivalent secondary batteries-often much lighter. The energy is stored in these batteries through the movement of lithium ions.
The lithium ion electric bike battery is more safe and reliable than the lead acid one. It does not explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat. Environment-friendly: Accredited with CE, without any hazardous and noxious substances. compacted in volume and light in weight.
As more and more pollution,Warming seriously,Earth Close to Unfit for human Living.
1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?
A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
2. Q: Can we get samples for test?
A: Yes, but free samples are not available at beginning.
3. Q: What’s your payment term?
A: TT, L/C, West Union, Paypal etc.
4. Q: What’s your warranty for products?
A: Generally speaking, it’s one year’s warranty, for quality problems, we will send you a new one.
5. Q: How long will be the delivery?
A: Usually delivery in 10-15 days, but could be change according to the quantity or other things.
