China 60v 20Ah lithium ion battery pack for E bike Manufacturer and Supplier | SOSLLI

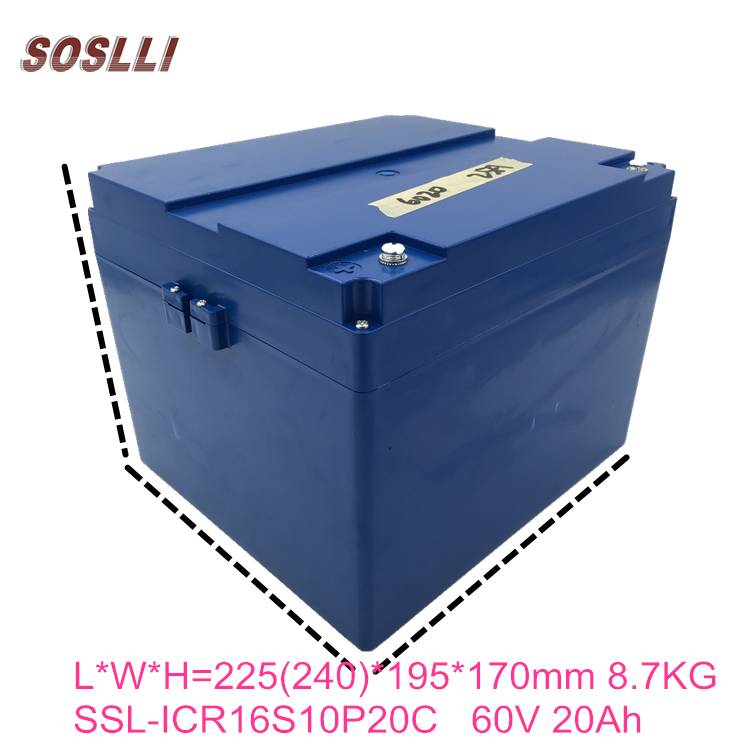

60v 20Ah lithium ion battery pack for E bike Featured Image

Short Description:

Title: 60v 20Ah lithium ion battery pack for electric motorcycle bicycle e bike
SSL-ICR16S10P18650E2
Introduction:

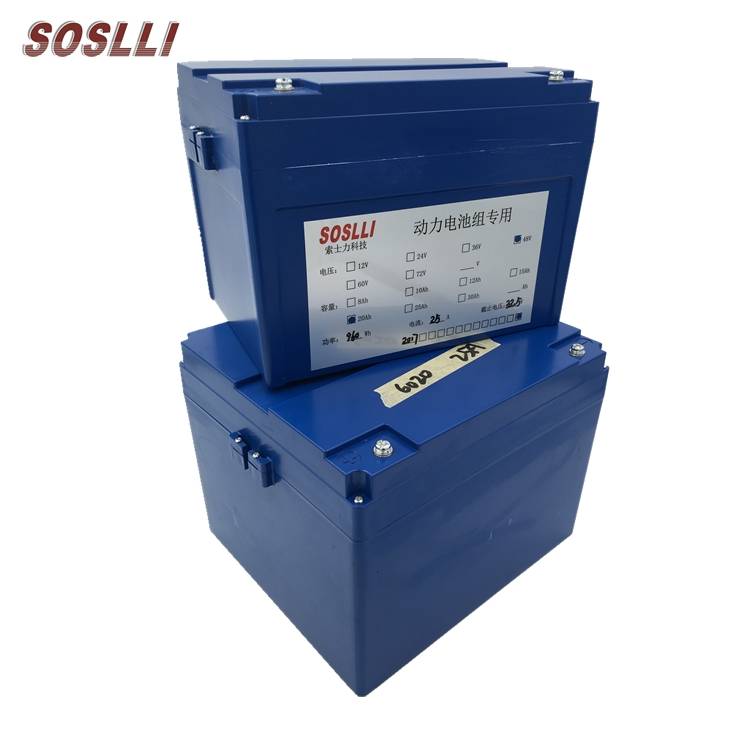

60V 20AH Li-Ion lithium ion battery pack with waterproof box for electric bike scooter motorcycle, electric golf cart, e-wheelchair,etc.

Send email to us Download as PDF

Tech Specs & Features

Product Video

FAQ

Product Details

60v 20Ah lithium ion battery pack:

No.	Item		Specification	Remarks
1	Brand Name		SOSLLI or OEM
2	Model NO.		SSL-ICR16S10P18650E2
3	Normilar Capacity		20h	0.2 C₅A discharge
4	Normilar Voltage		60V
5	Discharge Voltage (Min.)		44V
6	Charging Voltage (Max.)		67.2V
7	Charging Current (std.)		0.2 C₅A
8	Discharging Current (Max. continue)		1 C₅A
9	Discharging Current (Max. temporary)		2 C₅A
10	Charging Temperature & Humidity		0℃ ~ +45℃ 45~85%RH
11	Discharging Temperature & Humidity		-20℃ ~ +60℃ 45~85%RH
12	Battery storage and transportation environment temperature & humidity ranges	Min. 1 month	-20℃ ~ +60℃ 45~85%RH
		Min. 3 months	-20℃ ~ +45℃ 45~85%RH
		Min. 12 months	-20℃ ~ +25℃ 45~85%RH

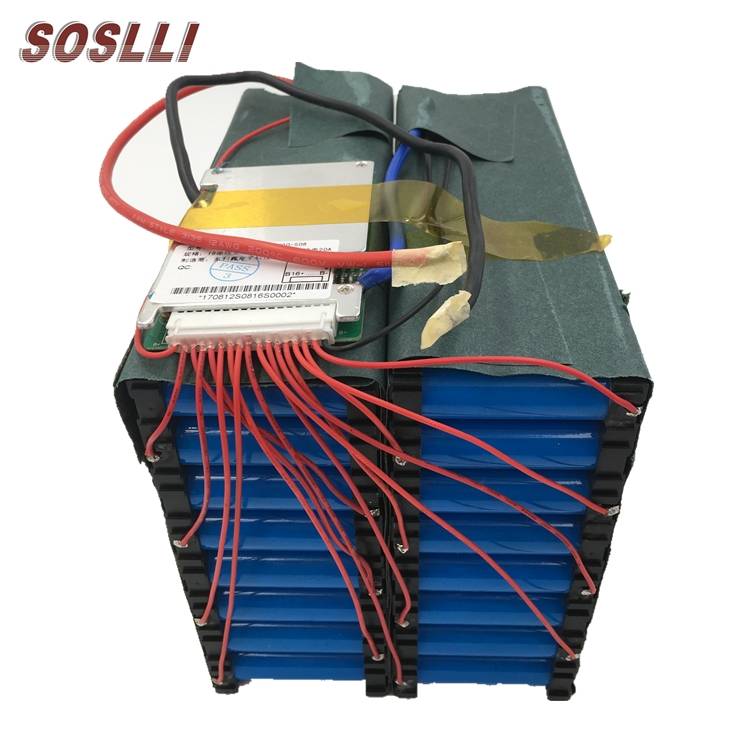

13	Battery Type		Li-ion battery 18650 2000mAh
14	Internal Impedance		≤80 mΩ
15	Protection Fuctions		Over charge, Over discharge, Over load, Short Circuit
16	Size		240195170mm or customized	Recommend or Customize
17	Weight		Approx. 8.6kg Plastic packing
18	Cycle Life		800 times
19	Warranty		12 months

All lithium ion battery PACK 22.2V series with 3.7v 2600 mAh 18650 cell as below.

Model	Voltage	Capacity	Size/Weight(package)
SSL-ICR6S1P	22.2V/24V	2.6Ah	4020200mm or Customized
SSL-ICR6S2P		5.2Ah	Recommend or Customized. The Lithium ion battery PACK can packing with PVC/Plastic box/Iron box that size/weight is according to the battery solution.
SSL-ICR6S3P		7.8Ah
SSL-ICR6S4P		10.4Ah
SSL-ICR6S5P		13.0Ah
SSL-ICR6S6P		15.6Ah
SSL-ICR6S7P		18.2Ah
SSL-ICR6S8P		20.8Ah
SSL-ICR6S9P		23.4Ah
SSL-ICR6S10P		26.0Ah
SSL-ICR6S20P		52Ah

Typical Advantage of Soslli's lithium Ion battery:

1. Safer: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging, no memory effect.
3. Longer cycle life more than 500 times @80% capacity retain.
4. Large batch production, offering very similar cells for rating.

Main Applications

1.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
2.Back-up System and UPS:Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment.
3.Other Applications:Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.

WHY CHOOSE US ?

HIGH PRODUCTIVITY
20 thousand square meters plant 12 automatic production line 600,000 battery packs and chargers production capacity a month.
STRICK CONTROL & BEST QUALITY
Strict control for cleanliness in dust-free workshop from IQC,IPQC to OQC, we control every step strictly CE, UL, SGS, FCC, ROHS and ISO9001: 2000 certified.
CUSTOMIZATION & FACTORY PRICE
We dedicated and experienced engineering, manufacturing and quality control teams work close to support our customers from product design to mass production.
EXCELLENT SERVICE
Reply within 24 working hours. We use specialized equipment, well-known suppliers of materials to resolve customer issues, to test every product in 100% for the quality assurance.

Our Service
1. Fast delivery service.
2. Quick response to your any inquiry within 12 hours.
3. Customized design is available, OEM and ODM are welcome.
4. Offer the highest quality with the best price.
5. We offer 2 years' warranty on our LiFePO4 battery.
6. Professional pre-sales service with whole-hearted after-sales service.

Previous:

Next: 60v 50Ah lithium ion battery pack for E rickshaw electric 3 wheelers

1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?

A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
