China 48v 100Ah LiFePO4 battery for telecom station backup power UPS station Manufacturer and Supplier | SOSLLI
Advantages
Title: 48v 100Ah LiFePO4 battery for telecom station for backup power UPS station
Model No.: SSL-IFR15S1PE1000
Introduction: 48V 100AH LiFePO4 lithium iron phosphate LFP battery pack for solar energy storage,off-grid, backup power.,UPS station,home household storage powerwall, iron tower, marine yacht,solar energy,etc.
Features of 48v 100ah lifepo4 battery
Maintenance free.Suitable for installation of communication cabinet.
Life span is more than 3500 cycles at 80% DOD
Bulit in BMS.Has multiple protection and communication functions to ensure the reliability of the battery pack and achieve remote monitoring real time date of batteries.
Wide temperature range and high reliability
Small internal resistance,superior performance
Multiple battery packs can be connected in parallel,suitable for high energy applications
Advantages of this 48v 100ah lifepo4 battery module
High energy cell. Advanced high capacity and long life span
Easy installation by simple module structure
Standard Module for various customer needs
Scalability. Easy to expand capacity.
Intelligent BMS management system. Super active/passive equalization manager.High resolution thermal management function
Compatibility. Compatible with various standard inverters
Mainly used for off-grid solar system storage, telecommunication, BTS, central data center, General macro base station, New energy base etc.
Product Details
48V 100Ah 15S1P lithium iron phosphate LiFePO4 battery pack for Energy storage,yacht,rv battery, fork lift,sweeper :
| No. | Item | Specification | Remarks | |
| 1 | Brand Name | SOSLLI or OEM | ||
| 2 | Model NO. | SSL-IFR15S1PE1000 | ||
| 3 | Norminal Capacity | 100Ah | 0.2 C5A discharge | |
| 4 | Norminal Voltage | 48.0V | ||
| 5 | Discharge Voltage (Min.) | 37.5V | ||
| 6 | Charging Voltage (Max.) | 54.75V | ||
| 7 | Charging Current (std.) | 0.2 C5A 20A | ||
| 8 | Discharging Current (Max. continue) | 1 C5A 100A | ||
| 9 | Discharging Current (Max. temporary) | 1.5C5A 150A | ||
| 10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH | ||
| 11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH | ||
| 12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +60℃ 45~85%RH | |
| Min. 3 months | -20℃ ~ +45℃ 45~85%RH | |||
| Min. 12 months | -20℃ ~ +25℃ 45~85%RH | |||
| 13 | Battery Cell | Prismatic LiFePO4 battery 3.2V 100Ah | ||
| 14 | Battery Box Size | custom made | ||
| 15 | BMS | included | ||
| 16 | Protection Fuctions | Over charge, Over discharge, Over load, Short Circuit | Customized Bottle type | |
| 17 | Approximate Weight | 35kg | ||
| 18 | Cycle Life | 2000 times | ||
| 19 | Warranty | 12 months | ||
Typical Advantage of SOSLLI's lithium Ion battery:
1. Safer: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging and no memory effect.
3. Longer cycle life more than 2000 times @80% capacity retain.
4. Large batch production, offering very similar cells for rating.
48V Lithium ion Battery Pack 30ah 40ah 100ah 120ah Llifepo4 Battery for Boat Golf Cart
48V Lithium ion Battery Pack 30ah 40ah 100ah 120ah Llifepo4 Battery for Boat Golf Cart
♦ Overvoltage protection
♦ Overcurrent protection
♦ Overcharge protection
♦ Overdischarge protection
♦ Overpower protection
♦ Temperature protection
SOSLLI Why Choose SOSLLI Lifepo4 Battery
SOSLLI high-quality cell increases the life cycles up to 2400 times while keeping its stable performance, 3x that of the normal lead acid batteries , suitable for long-term cycle use.
SOSLLI high-quality cell brings higher conversion efficiency of the energy, the common performance of the B Level batteries which are most common in the market will only have 75% percentage capacity left, however, we will remain 99%.
SOSLLI We Accept OEM ODM Order
Customized Size Customized Shell ( ABS / Metal )
Customized Color Customized Handle
Customized LOGO Customized LOGO
Customized Bluetooth Customized Weight
Others as your requirements Customized LED Display
Customized LED Display V Others as your requirments
LED Display Easy to check the battery electric , voltage, catacity

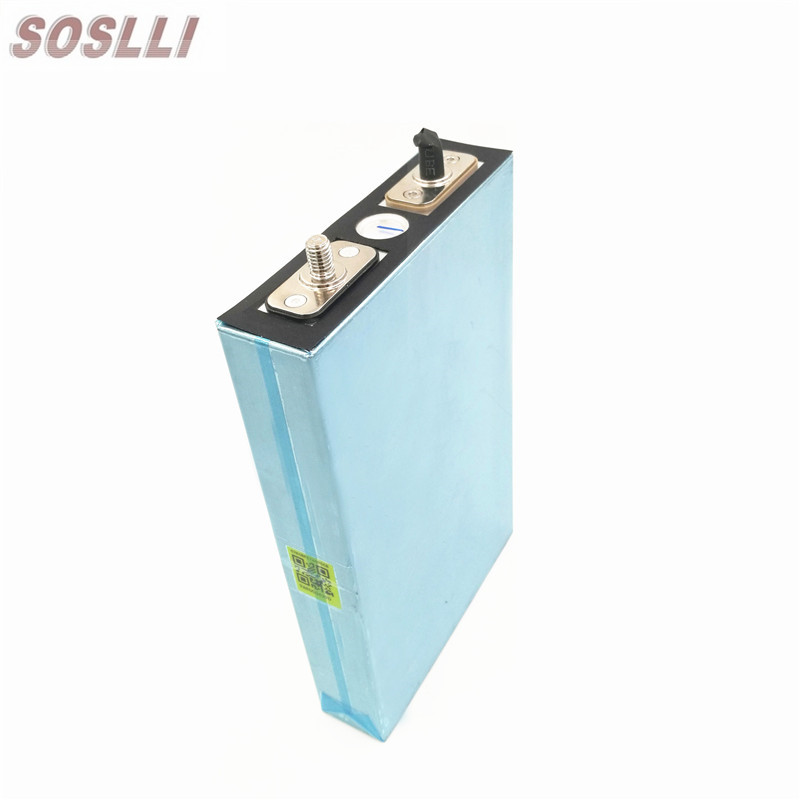

We Choose High Quality Lifepo4 Battery Cell
High energy| Small size| Light weight| Stability and security

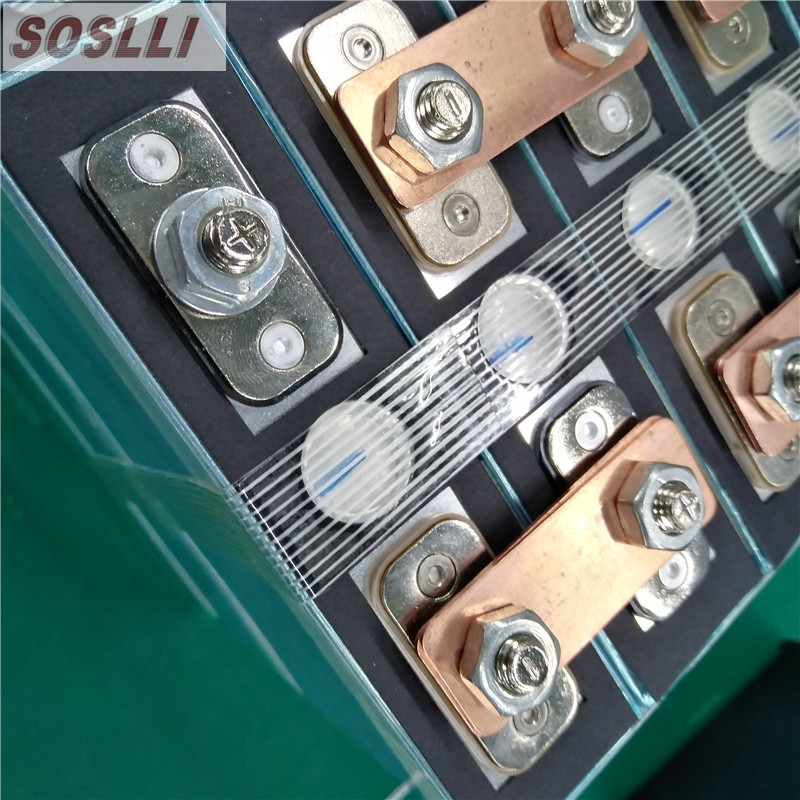

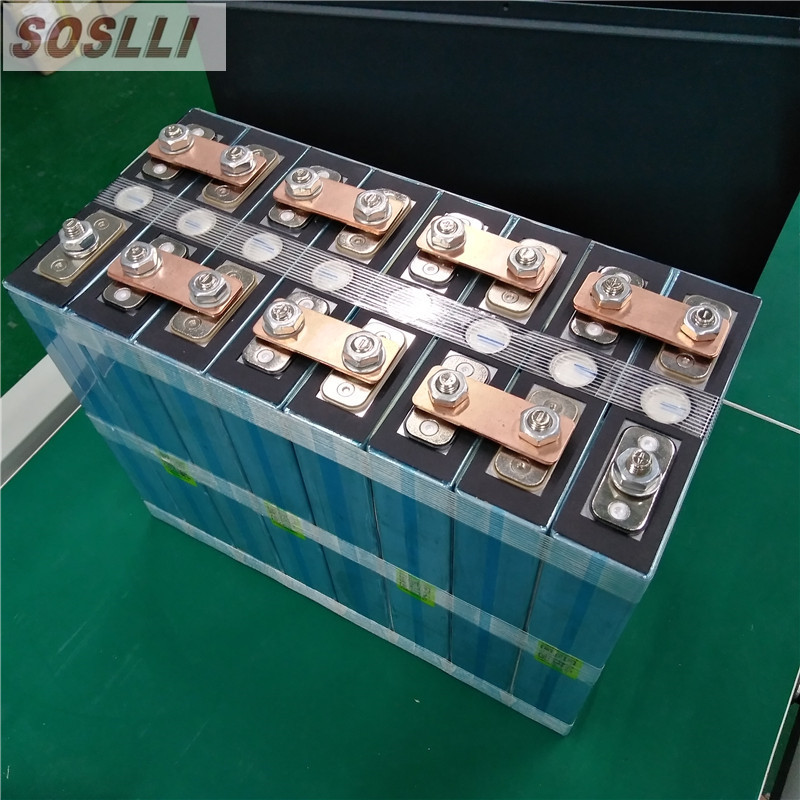

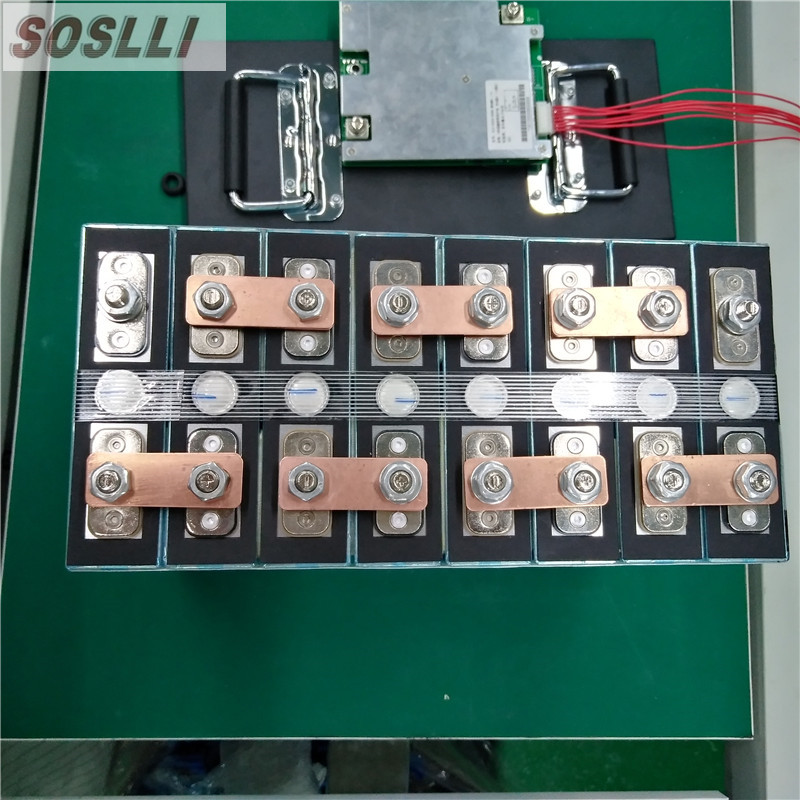

SOSLLI Inside Structure
Each one will match a BMS to protect the lithium battery
Battery Pack Application:
(SOSLLI-Battery Pack : Lithium Ion Battery, E-Bike Battery, Lifepo4 Battery, Polymer Battery Pack Solution)
(SOSLLI-Battery Pack Application: E-bike, E-motorcycle, Golf Cart, Sports car, Forklift, Solar energy storage system, Medical equipment, Base station and so on)
1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?
A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
2. Q: Can we get samples for test?
A: Yes, but free samples are not available at beginning.
3. Q: What’s your payment term?
A: TT, L/C, West Union, Paypal etc.
4. Q: What’s your warranty for products?
A: Generally speaking, it’s one year’s warranty, for quality problems, we will send you a new one.
5. Q: How long will be the delivery?
A: Usually delivery in 10-15 days, but could be change according to the quantity or other things.
