China Rechargeable 36v 100Ah 12 series LiFePo4 battery packfor off-grid solar energy Manufacturer and Supplier | SOSLLI

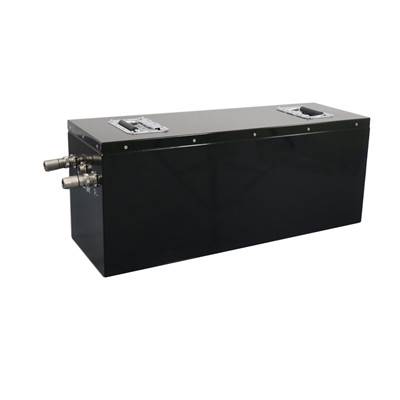

Rechargeable 36v 100Ah 12 series LiFePo4 battery packfor off-grid solar energy Featured Image

Short Description:

Title: 36V 100AH LiFePO4 lithium iron phosphate battery pack for off-grid solar energy,
Model No.: SSL-IFR12S1PE1000
Introduction:
Deep Cycle 36V LiFePO4 Battery 100Ah For Trolling Motor, solar energy storage,off-grid, backup power.,UPS station,home household storage powerwall, iron tower, marine

Send email to us Download as PDF

Tech Specs & Features

Product Video

FAQ

Product Details

Rechargeable 36v 100Ah LiFePO4 battery for solar wind off-grid energy storage:

PRODUCT DESCRIPTION

No.	Item		Specification	Remarks
1	Brand Name		SOSLLI or OEM
2	Model NO.		SSL-IFR12S1PE1000
3	Norminal Capacity		100Ah	0.2 C₅A discharge
4	Norminal Voltage		36.0V
5	Discharge Voltage (Min.)		30.0V
6	Charging Voltage (Max.)		53.8V
7	Charging Current (std.)		0.2 C₅A 20A
8	Discharging Current (Max. continue)		1 C₅A 100A
9	Discharging Current (Max. temporary)		1.5C₅A 150A
10	Charging Temperature & Humidity		0℃ ~ +45℃ 45~85%RH
11	Discharging Temperature & Humidity		-20℃ ~ +60℃ 45~85%RH
12	Battery storage and transportation environment temperature & humidity ranges	Min. 1 month	-20℃ ~ +60℃ 45~85%RH
		Min. 3 months	-20℃ ~ +45℃ 45~85%RH
		Min. 12 months	-20℃ ~ +25℃ 45~85%RH
13	Battery Cell		Prismatic LiFePO4 battery 3.2V 100Ah
14	Battery Box Size		custom made
15	BMS		included
16	Protection Fuctions		Over charge, Over discharge, Over load, Short Circuit	Customized Bottle type
17	Approximate Weight		27kg
18	Cycle Life		2000 times
19	Warranty		12 months

Can be with external display.

Can be with CAN communication

Powerful Lines Optional

Product Advantages:

8+ Years Longer servce life
1. Long time OEM cooperation with Germany world first class Automobile company
2. 3 Years Warranty
3. Highest discharge efficiency(more than 99.8%)

Easy operation
1. Plug and Play(Easy installation)
2. Modular(Can be in Parallel and in series to increase capacity or Voltage)
3. Free Maintenance

Safe Performance

Built in BMS, Integrated BMS to monitor tempeature, voltage, current to realize over voltage protection, over current protection, over temperature protection, short circuit protection, Reverse Polarity protection.

Applications

Picture of 24V 200Ah LPF battery

Lithium LPF battery Applications:

Engine Starting Battery

Commercial Bus and Transit: E-car, E-bus, Golf trolley/car

E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan

Wheel chair, E-truck, E-sweeper, Floor cleaner, E-walker etc.

Intellectual Robots

LIfePO4 Battery Replace Lead acid or AGM or AA Battery .

Over 2000 cycel times! 4 Years warranty!

Application :

1)Communication device: communication base station, handheld road test instruments, portable communication tester, portable radio station.

2)Medical instruments: monitor, electrocardiogram machine, portable type-B ultrasonic, defibrillator, breathing machine.

3)Industrial instrument:water quality testing meter, geotechnical tester, laser orientation instrument car arrester.

4)Electric tools: handheld electric drill, moped, golf carts.

Our Service
1. Respond in 24 hours for any inquiry and consultation on our EV battery product .
2. Take actions quickly for normal client's claim within 24 hours
3. Good after sales service : we offer one and half year quality warranty to our client ,we will take responsibility if there is any quality
4. One by one tested before shipment.

Previous:

Next: 36V 20Ah lithium iron phosphate LiFePO4 battery pack for electric bike

1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?

A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
