China 36V 10Ah water bottle lithium battery li-ion pack for electric bicycle Manufacturer and Supplier | SOSLLI

Short Description:

36V 10Ah downtube water bottle kettle battery, fast easy assembly, waterproof, with light display of electricity, built-in bms to protect battery. Optional Chinese cells and imported Korean Japanese cells.


Tech Specs & Features

Product Video

FAQ

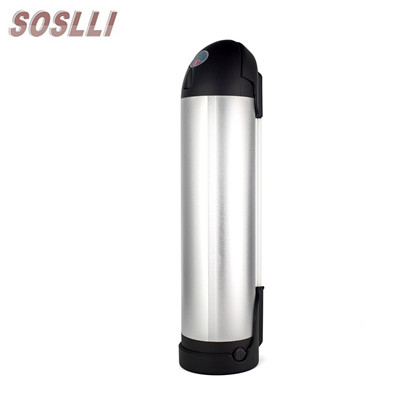

SOSLLI 36v 10ah water bottle electric bicycle lithium battery with kettle case:

PRODUCT DESCRIPTION
No.ItemSpecificationRemarks
1Brand NameSOSLLI or OEM
2Model NO.SSL-10S5P20P
3Normilar Capacity10.0Ah0.2 C5A discharge
4Normilar Voltage36V
5Discharge Voltage (Min.)42V
6Charging Voltage (Max.)27V
7Charging Current (std.)0.5 C5A
8Discharging Current (Max. continue)1 C5A
9Discharging Current (Max. temporary)2 C5A
10Charging Temperature & Humidity0℃ ~ +45℃   45~85%RH
11Discharging Temperature & Humidity-20℃ ~ +60℃ 45~85%RH
12Battery storage and transportation environment temperature & humidity rangesMin. 1 month-20℃ ~ +60℃ 45~85%RH
Min. 3 months-20℃ ~ +45℃ 45~85%RH
Min. 12 months-20℃ ~ +25℃ 45~85%RH
13Battery TypeLi-ion battery 18650 2000mAh
14Internal Impedance ≤60 mΩ
15Protection FuctionsOver charge, Over discharge,
Over load, Short Circuit

16SizeD90*H340mmCustomized Bottle type
17WeightApprox. 5.0kg PVC packing
18Cycle Life800 times
19Warranty12 months

Features of 36V 10Ah bottle battery:

1. High operation voltage.
2. High energy density.
3. Long cycle life, more than 500 charge/discharge cycles ( 80% capacity remained ).
4. Lowl self-discharge, less than 3% monthly.
5. Wide temperature range, operation from :-20°C~+60°C
6. Be charged & discharged at anytime because of non-memory effect
7. 5 LED power indicators which can show the remaining power
8. High level of safety, vision Lithium ion batteries catch no fire and cause no explosion in breaking experiment, with acupuncture, smash, drop, and so on.

Typical Advantage of Soslli's lithium Ion battery PACK:

1. Safer: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging and no memory effect.
3. Longer cycle life more than 500 times @80% capacity retain.
4. Large batch production, offering very similar cells for rating.

Applications:

1) Electric bikes
2) electric scooters
3) golf trolleys
4) lawn mowers
5) electric wheelchairs
6) Ride-on toys

QC Standard for Battery Pack

1. Check all connection included cell to cell, data wires between cells and BMS, BMS to the cell, BMS
2. to the discharging port and charging port
3. 100% capacity at 0.2C discharging and in normal temperature 20°c
4. >98% capacitive at 1.5C discharging and in normal temperature 20°c
5. >95% capacity at normal discharging in very high temperature 55°c
6. >50% capacity at normal discharging in very low temperature -20°c
7. Over-discharging testing

8. Over-charging testing





  • Previous:
  • Next:

  • 1.  Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?

    A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.

    FAQ

    2.  Q: Can we get samples for test?

    A: Yes, but free samples are not available at beginning.

    3. Q: What’s your payment term?

    A: TT, L/C, West Union, Paypal etc.

    4. Q: What’s your warranty for products?

    A: Generally speaking, it’s one year’s warranty, for quality problems, we will send you a new one.

    5. Q: How long will be the delivery?

    A: Usually delivery in 10-15 days, but could be change according to the quantity or other things.
