China 24V 200AH LiFePO4 lithium iron phosphate battery pack for off-grid solar energy Manufacturer and Supplier | SOSLLI

24V 200AH LiFePO4 lithium iron phosphate battery pack for off-grid solar energy Featured Image

Short Description:

Title: 24V 200AH LiFePO4 lithium iron phosphate battery pack for off-grid solar energy
Model No.: SSL-IFR8S2PE1000
Introduction: 24V 200AH LiFePO4 lithium iron phosphate LFP battery pack for solar energy storage,off-grid, backup power.,UPS station,home household storage powerwall, iron tower, marine

Send email to us Download as PDF

Tech Specs & Features

Product Video

FAQ

Product Details

Title: 24V 200AH LiFePO4 lithium iron phosphate battery pack for off-grid solar energy
Model No.: SSL-IFR8S2PE1000
Introduction: 24V 200AH LiFePO4 lithium iron phosphate LFP battery pack for solar energy storage,off-grid, backup power.,UPS station,home household storage powerwall, iron tower, marine yacht,solar energy,etc.
Product Description

Rechargeable Storage 24V 200Ah LiFePO4 Energy Battery Pack for Solar UPS System Specification of 24V Lithium LiFePO4 Battery

No.	Item		Specification	Remarks
1	Brand Name		SOSLLI or OEM
2	Model NO.		SSL-IFR8S2PE1000
3	Norminal Capacity		200Ah	0.2 C₅A discharge
4	Norminal Voltage		25.6V
5	Discharge Voltage (Min.)		20.0V
6	Charging Voltage (Max.)		29.2V
7	Charging Current (std.)		0.25 C₅A 40A
8	Discharging Current (Max. continue)		0.5 C₅A 100A
9	Discharging Current (Max. temporary)		0.75 C₅A 150A
10	Charging Temperature & Humidity		0℃ ~ +45℃ 45~85%RH
11	Discharging Temperature & Humidity		-20℃ ~ +60℃ 45~85%RH
12	Battery storage and transportation environment temperature & humidity ranges	Min. 1 month	-20℃ ~ +60℃ 45~85%RH
		Min. 3 months	-20℃ ~ +45℃ 45~85%RH
		Min. 12 months	-20℃ ~ +25℃ 45~85%RH

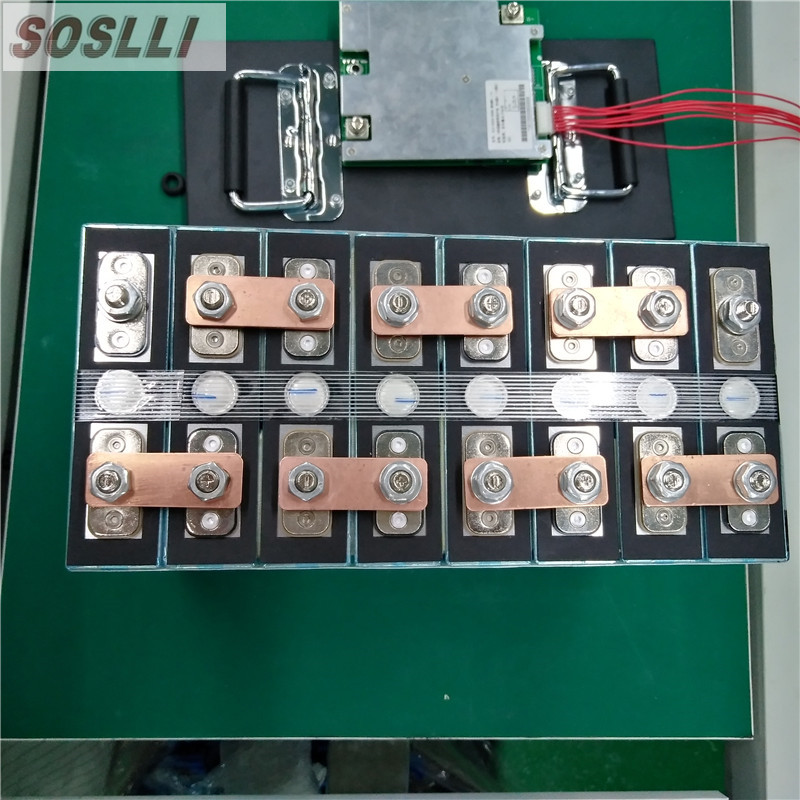

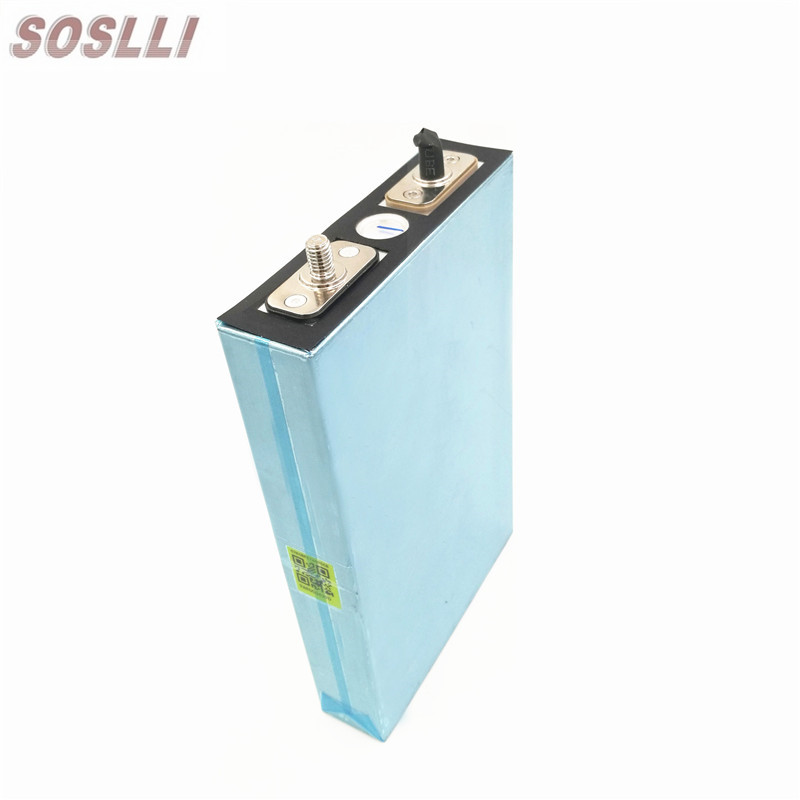

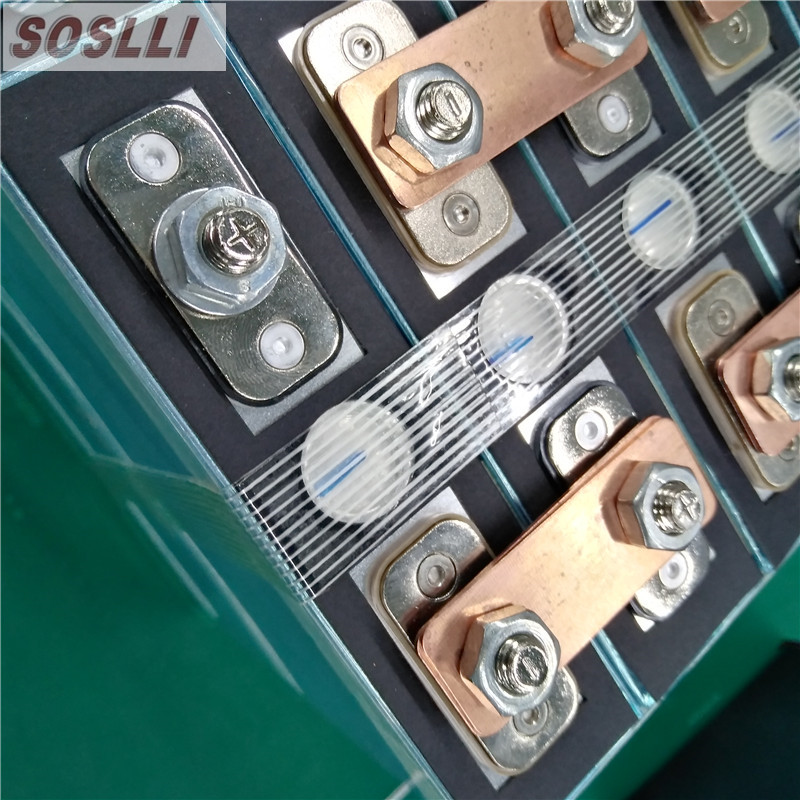

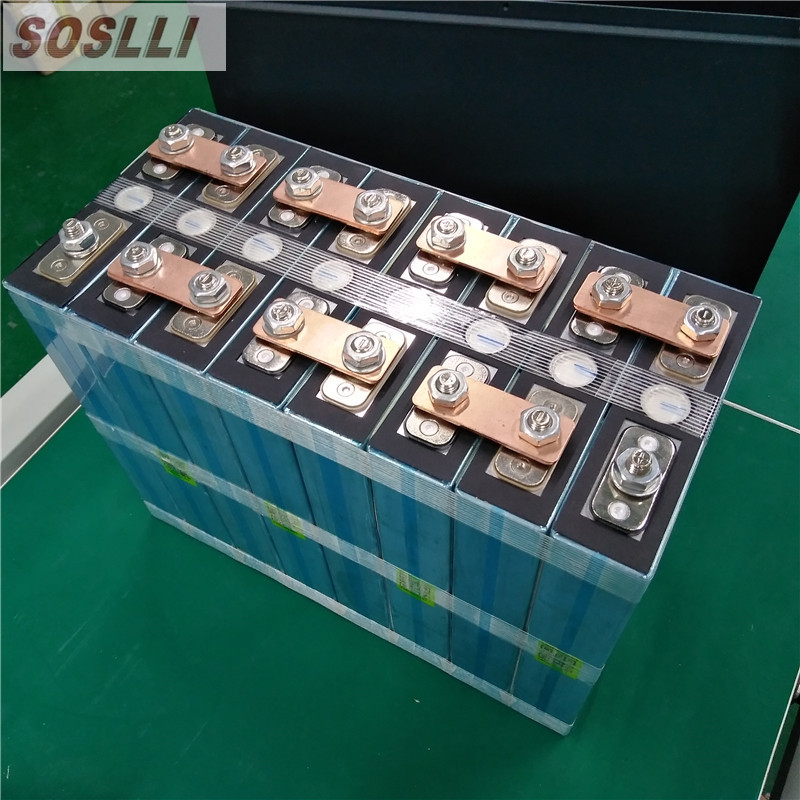

13	Battery Cell		Prismatic LiFePO4 battery 3.2V 100Ah
14	Battery Box Size		Box:34cm28cm25cmRed/black pole: 27mm
15	Protection Fuctions		Over charge, Over discharge, Over load, Short Circuit
16	BMS		include
17	Weight		Approx. 36kg
18	Cycle Life		2000 times
19	Warranty		12 months

Product Advantages of Lithium lron phosphate-lithium power battery:

Long warranty period:2 years

Higher energy density, smaller volumn for household.

Support connected in parallel mode for expansion

Photovoltaic system: This battery pack is designed for household photovoltaic systems.

Battery management system (BMS): The battery packs built-in BMS monitors its

operation and prevents the battery from operating outside design limitations.

Expandability: This battery pack can be easily expanded by adding expansion battery packs in parallel connection.

Applications

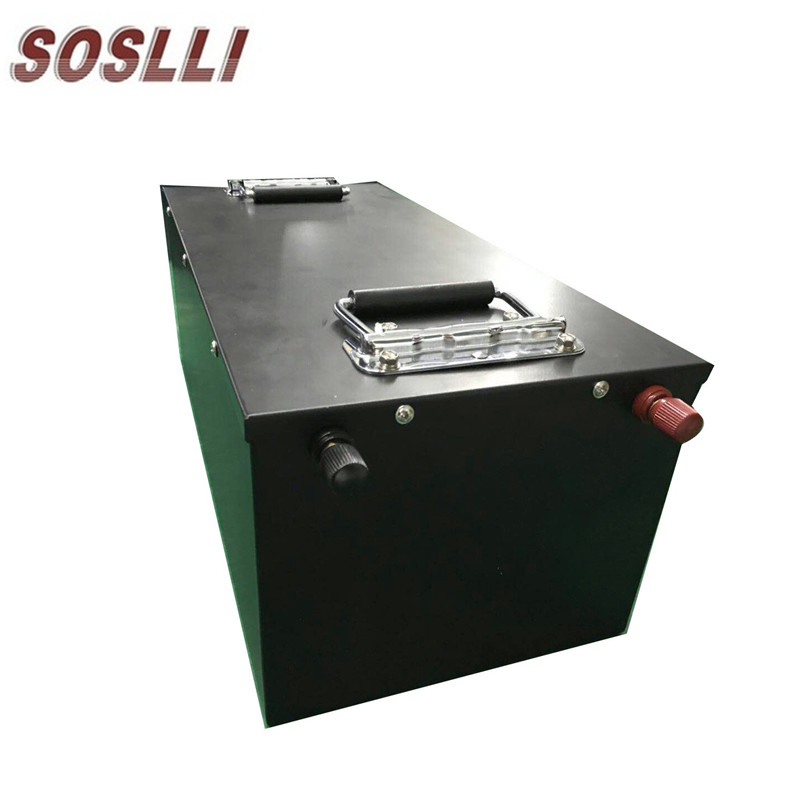

Picture of 24V 200Ah LPF battery

Lithium LPF battery Applications:

Engine Starting Battery

Commercial Bus and Transit: E-car, E-bus, Golf trolley/car

E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan

Wheel chair, E-truck, E-sweeper, Floor cleaner, E-walker etc.

Intellectual Robots

LIfePO4 Battery Replace Lead acid or AGM or AA Battery .

Over 2000 cycel times! 4 Years warranty!

Application :

1)Communication device: communication base station, handheld road test instruments, portable communication tester, portable radio station.

2)Medical instruments: monitor, electrocardiogram machine, portable type-B ultrasonic, defibrillator, breathing machine.

3)Industrial instrument:water quality testing meter, geotechnical tester, laser orientation instrument car arrester.

4)Electric tools: handheld electric drill, moped, golf carts.

Our Service
1. Respond in 24 hours for any inquiry and consultation on our EV battery product .
2. Take actions quickly for normal client's claim within 24 hours
3. Good after sales service : we offer one and half year quality warranty to our client ,we will take responsibility if there is any quality
4. One by one tested before shipment.

Previous: 24V 100AH LiFePO4 lithium iron phosphate battery pack for off-grid solar energy

Next: 24V 200AH LiFePO4 lithium iron phosphate battery pack for off-grid solar energy

1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?

A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
