China Customized 12V 100AH LiFePO4 lithium iron phosphate battery pack Manufacturer and Supplier | SOSLLI

Short Description:

12V 100AH LiFePO4 lithium iron phosphate LFP battery pack for solar energy storage,off-grid, backup power,UPS station,home household storage powerwall, iron tower, marine yacht,solar energy,etc.


Tech Specs & Features

Product Video

FAQ

1.Small size, light weight, large capacity, environmental friendly, no memory effect.

2.Long cycle life: after 2000 times, the left capacity over 80%, can discharging/charging over 3000 times.

3. Environment friendly. No cadmium, lead, mercury. Green energy.

4.High safety class. Assembly with battery management system. Have over-charging, over-discharging, short-circuit protection. In condition of high temperature, trash, needling, no fire, no explosion.

5. Save cost for each usage for long cycle life.



12V 100AH  lithium battery pack with 2U 19″ rack mount:

No.ItemSpecificationRemarks
1Brand NameSOSLLI or OEM
2Model No.SSL-IFR4S1PE1000
3Normilar Capacity100Ah0.2 C5A discharge
4Nominal Voltage12.8V
5Discharge Voltage (Min.)10.0V
6Charging Voltage (Max.)14.6V
7Charging Current (std.)0.2 C5A      20A
8Discharging Current (Max. continue)1 C5A         100A
9Discharging Current (Max. temporary)1.5 C5A      150A
10Charging Temperature & Humidity0℃ ~ +45℃   45~85%RH
11Discharging Temperature & Humidity-20℃ ~ +60℃ 45~85%RH
12Battery storage and transportation environment temperature & humidity rangesMin. 1 month-20℃ ~ +60℃ 45~85%RH
Min. 3 months-20℃ ~ +45℃ 45~85%RH
Min. 12 months-20℃ ~ +25℃ 45~85%RH
13Battery CellPrismatic LiFePO4 battery 3.2V 100Ah

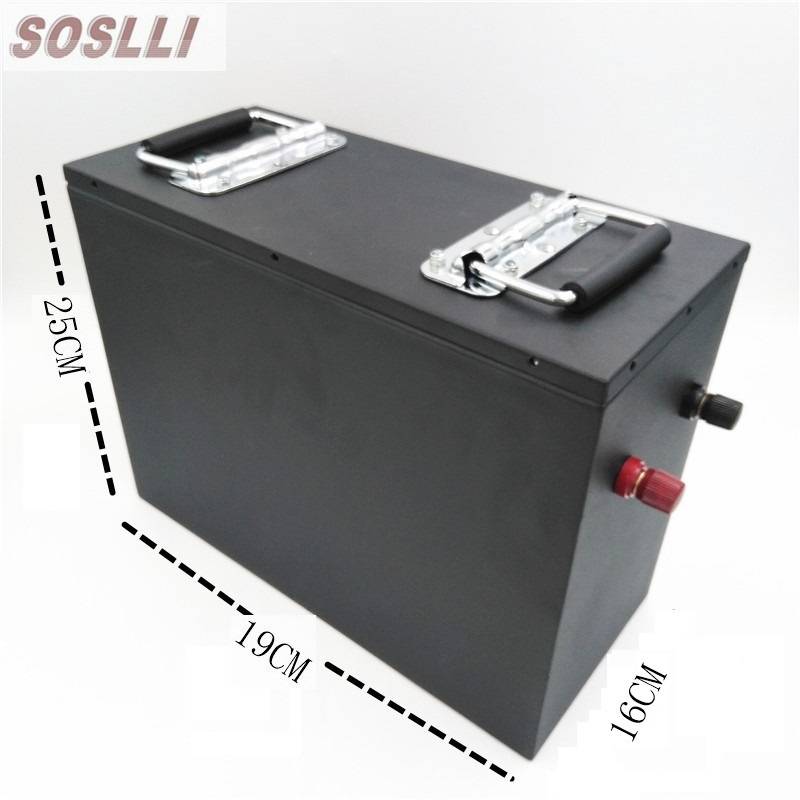

14Battery Box SizeBox:19cm*16cm*25cmRed/black pole: 27mm
15BMS include
16BMS Protection FuctionsOver charge, Over discharge,
Over load, Short Circuit

17Approximate Weight12kg
18Cycle Life2000 times
19Warranty12 months

Typical Advantage of Soslli’s lithim ion battery PACK:
1. Safer: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging, no memory effect.
3. Longer cycle life more than 2000 times @70% capacity retain.
4. Large batch production, offering very similar cells for rating.




  • Previous:
  • Next:

  • 1.  Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?

    A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.

    FAQ

    2.  Q: Can we get samples for test?

    A: Yes, but free samples are not available at beginning.

    3. Q: What’s your payment term?

    A: TT, L/C, West Union, Paypal etc.

    4. Q: What’s your warranty for products?

    A: Generally speaking, it’s one year’s warranty, for quality problems, we will send you a new one.

    5. Q: How long will be the delivery?

    A: Usually delivery in 10-15 days, but could be change according to the quantity or other things.
