China 12V 100AH Lithium iron phosphate battery pack for solar energy storage Manufacturer and Supplier | SOSLLI

12V 100AH Lithium iron phosphate battery pack for solar energy storage Featured Image

Short Description:

Model No.: SSL-IFR4S1PE1000
Introduction: 12V 100AH LiFePO4 lithium iron phosphate LFP battery pack for solar energy storage,off-grid, backup power.,UPS station,home household storage powerwall, iron tower, marine yacht,solar energy,etc.

Send email to us Download as PDF

Tech Specs & Features

Product Video

FAQ

Product Details & Advantages

LiFePO4 12V lithium battery 100Ah Customized Batteries Deep Cycle Li Ion Lithium Ups Battery 12V 100Ah Lithium Iron Phosphate Battery with BMS.
Model No.: SSL-IFR4S1PE1000
Introduction: Every Lithium Battery we offer is built with a Fail Safe Built in Battery Protection System (BMS).
LiFePO4 battery 12v 100ah , created by the use of Iron (Fe) as a cathode material. LiFePO4 cells have a higher discharge current, do not explode under extreme conditions and weigh less.

No.	Item		Specification	Remarks
1	Brand Name		SOSLLI or OEM
2	Model No.		SSL-IFR4S1PE1000
3	Normilar Capacity		100Ah	0.2 C₅A discharge
4	Nominal Voltage		12.8V
5	Discharge Voltage (Min.)		10.0V
6	Charging Voltage (Max.)		14.6V
7	Charging Current (std.)		0.2 C₅A 20A
8	Discharging Current (Max. continue)		1 C₅A 100A
9	Discharging Current (Max. temporary)		1.5 C₅A 150A
10	Charging Temperature & Humidity		0℃ ~ +45℃ 45~85%RH
11	Discharging Temperature & Humidity		-20℃ ~ +60℃ 45~85%RH
12	Battery storage and transportation environment temperature & humidity ranges	Min. 1 month	-20℃ ~ +60℃ 45~85%RH
		Min. 3 months	-20℃ ~ +45℃ 45~85%RH
		Min. 12 months	-20℃ ~ +25℃ 45~85%RH

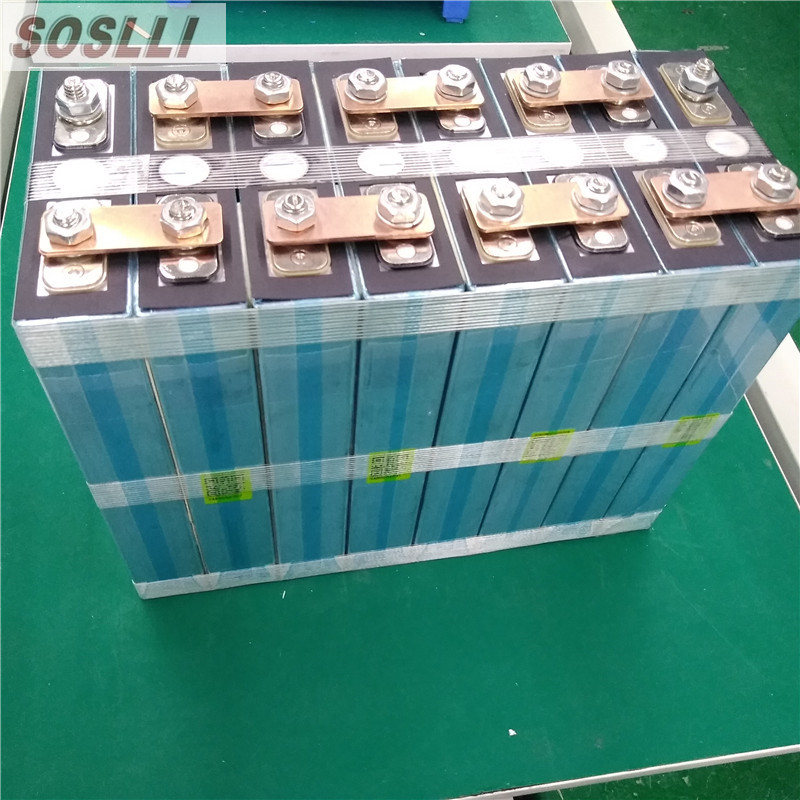

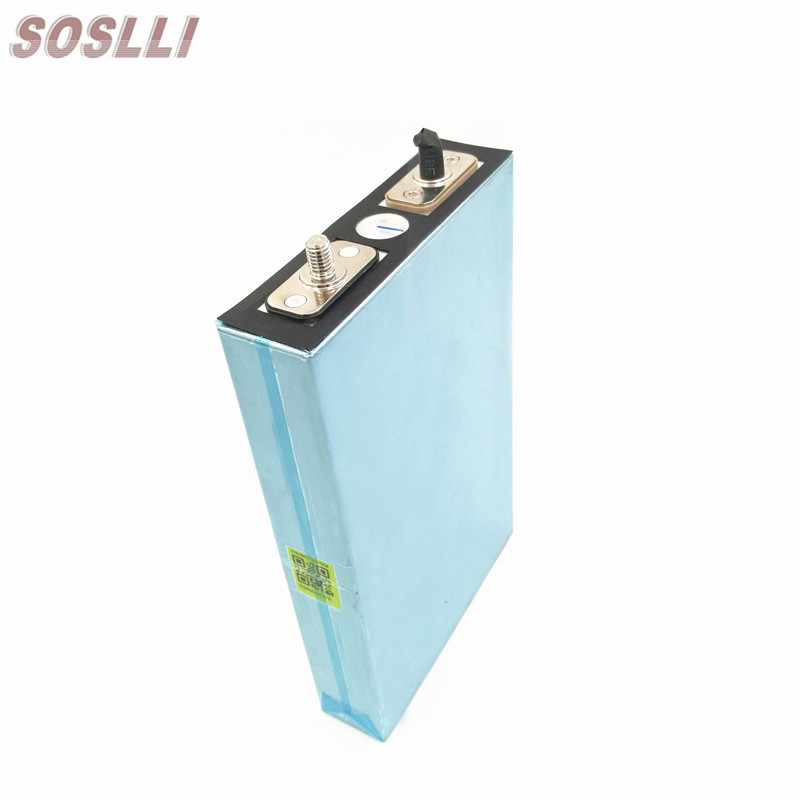

13	Battery Cell		Prismatic LiFePO4 battery 3.2V 100Ah

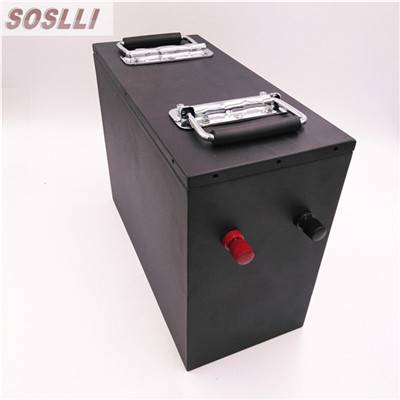

14	Battery Box Size		Box:19cm16cm25cmRed/black pole: 27mm
15	BMS		include
16	BMS Protection Fuctions		Over charge, Over discharge, Over load, Short Circuit
17	Approximate Weight		12kg
18	Cycle Life		2000 times
19	Warranty		12 months

Key Features :

1.Small size, light weight, large capacity, environmental friendly, no memory effect.

2.Long cycle life: after 2000 times, the left capacity over 80%, can discharging/charging over 3000 times.

3. Environment friendly. No cadmium, lead, mercury. Green energy.

4.High safety class. Assembly with battery management system. Have over-charging, over-discharging, short-circuit protection. In condition of high temperature, trash, needling, no fire, no explosion.

5. Save cost for each usage for long cycle life.

Applications

12V 100AH LiFePO4 lithium iron phosphate LFP battery pack for solar energy storage,off-grid, backup power.,UPS station,home household storage powerwall, iron tower, marine yacht,solar energy,etc.

Main Applications:

1.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
2.Back-up System and UPS:Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment.
3.Other Applications:Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.

4.Lead acid replacement: use 12V100AH LiFePO4 as one unit, combine them by series or parallel connection, can acheive high capacity,such as 12V200AH 12V300AH 12V400AH 12V500AH 24V100AH 24V200AH 24V300AH 24V400AH 24V500AH,etc. It is much smaller than SLA battery and 3 times longer cycle life,green energy and no pollution to environment.

Previous: 12V 200AH liFePO4 battery pack in 2U case for telecom application

Next: Customized 12V 100AH LiFePO4 lithium iron phosphate battery pack

1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?

A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
