China 12V 200AH liFePO4 battery pack in 2U case for telecom application Manufacturer and Supplier | SOSLLI

12V 200AH liFePO4 battery pack in 2U case for telecom application Featured Image

Short Description:

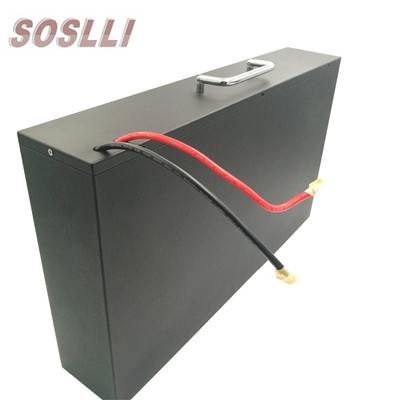

Title: 12V 200AH LiFePO4 battery pack in 2U case for telecom application
Model No.: SSL-IFR4S2PE1000
Introduction: 12V 200AH LiFePO4 lithium iron phosphate LFP battery pack for solar energy storage,off-grid, backup power.,UPS station,home household storage powerwall, iron tower, marine yacht,solar energy,etc.

Send email to us Download as PDF

Tech Specs & Features

Product Video

FAQ

Advantages

Title: 12V 200AH LiFePO4 battery pack for solar energy storage
Model No.: SSL-IFR4S2PE1000
Introduction: 12V 200AH LiFePO4 lithium iron phosphate LFP battery pack for solar energy storage,off-grid, backup power.,UPS station,home household storage powerwall, iron tower, marine yacht,solar energy,etc.

No.	Item		Specification	Remarks
1	Brand Name		SOSLLI or OEM
2	Model NO.		SSL-IFR4S2PE1000
3	Normilar Capacity		200Ah	0.2 C5A discharge
4	Nominal Voltage		12.8V
5	Discharge Voltage (Min.)		10.0V
6	Charging Voltage (Max.)		14.6V
7	Charging Current (std.)		0.2 C5A 40A
8	Discharging Current (Max. continue)		0.5C5A 100A
9	Discharging Current (Max. temporary)		0.75 C5A 150A
10	Charging Temperature & Humidity		0℃ ~ +45℃ 45~85%RH
11	Discharging Temperature & Humidity		-20℃ ~ +60℃ 45~85%RH
12	Battery storage and transportation environment temperature & humidity ranges	Min. 1 month	-20℃ ~ +60℃ 45~85%RH
		Min. 3 months	-20℃ ~ +45℃ 45~85%RH
		Min. 12 months	-20℃ ~ +25℃ 45~85%RH

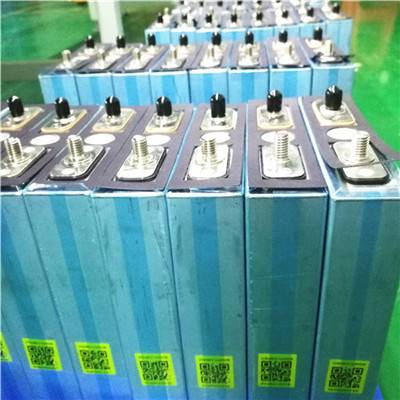

13	Battery Cell Type		Prismatic cell 3.2V 100AH
14	Battery Box Size		Box:475mm285mm90mm
15	Protection Fuctions		Over charge, Over discharge, Over load, Short Circuit
16	Size		Customized
17	Weight		Approx. 20kg metal box
18	Cycle Life		2000 times
19	Warranty		12 months

Key Features :
♦Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
♦Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
♦Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
♦Wider Temperature Range : -20℃~60℃
♦Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation

Applications :
♦Wheelchairs and scooters
♦Solar/wind energy storage
♦Back-up power for small UPS
♦Golf trolleys & buggies
♦Electric bikes

Product Details

LiFePO4 12V lithium battery 200Ah Customized Batteries Deep Cycle Li Ion Lithium Ups Battery 12V 100Ah Lithium Iron Phosphate Battery with BMS.
Every Lithium Battery we offer is built with a Fail Safe Built in Battery Protection System (BMS).
LiFePO4 battery 12v 100ah , created by the use of Iron (Fe) as a cathode material. LiFePO4 cells have a higher discharge current, do not explode under extreme conditions and weigh less.

Main Applications
1.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
2.Back-up System and UPS:Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment.
3.Other Applications:Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.

Fast delivery service.
1. Quick response to your any inquiry within 12 hours.
2. Customized design is available, OEM and ODM are welcome.
3 Offer the highest quality with the best price.
4. We offer 2 years' warranty on our LiFePO4 battery.
5. Professional pre-sales service with whole-hearted after-sales service.

Pack in safety industrial package, with IATA shipping standard.
1. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
2. For large order, ship by AIR or OCEAN.

WHY CHOOSE US ?

HIGHPRODUCTIVITY
20 thousand square meters plant 12 automatic production line 600,000 battery packs and chargers production capacity a month.
STRICK CONTROL & BEST QUALITY
Strict control for cleanliness in dust-free workshop from IQC,IPQC to OQC, we control every step strictly CE, UL, SGS, FCC, ROHS and ISO9001: 2000 certified.
CUSTOMIZATION & FACTORY PRICE
We dedicated and experienced engineering, manufacturing and quality control teams work close to support our customers from product design to mass production.
EXCELLENT SERVICE
Reply within 24 working hours. We use specialized equipment, well-known suppliers of materials to resolve customer issues, to test every product in 100% for the quality assurance.

Previous: 12V 5AH 32650 4s1p long LiFePO4 battery pack for electric curtain

Next: 12V 100AH Lithium iron phosphate battery pack for solar energy storage

1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?

A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
